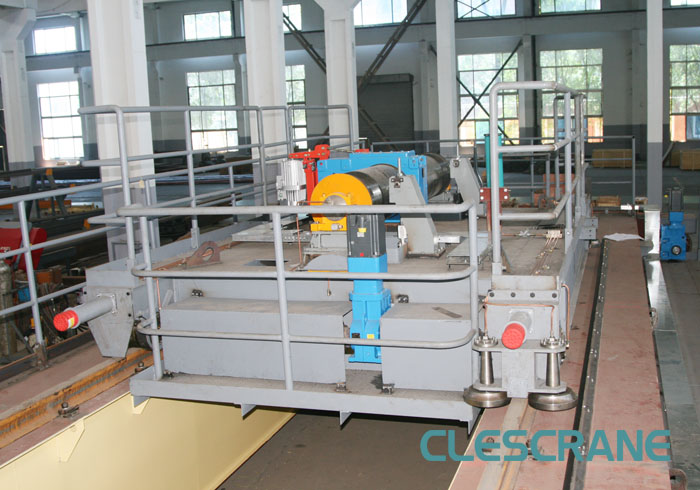

1500 cold rolling mill roll automatic loading system technical characteristics

1500 cold rolling mill roll automatic loading control system has below characteristics:
1. Adopt center control room controlling method. It is unmanned factory running, fully automation. Service controlling system drives service motor.
2. Collect data and provides X axis positioning coordinates by parts positioning equipment and crane measuring distance using laser.
3. Using gears, gear rack , encoder to control the travel of trolley and positioning by Y axis coordinates.
4. Using encoder to control the lifting height and Z axis height coordinates.
The whole crane runs accurately under the order of X.Y.Z axis data to every spot of the factory.
5. The accuracy is ±2mm.
