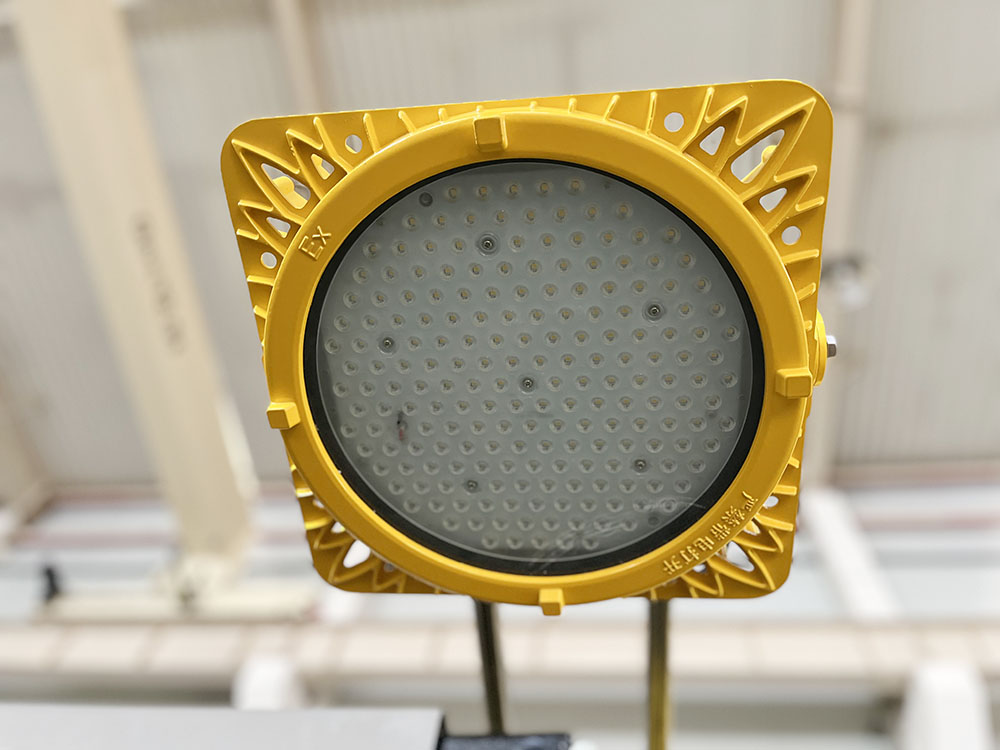

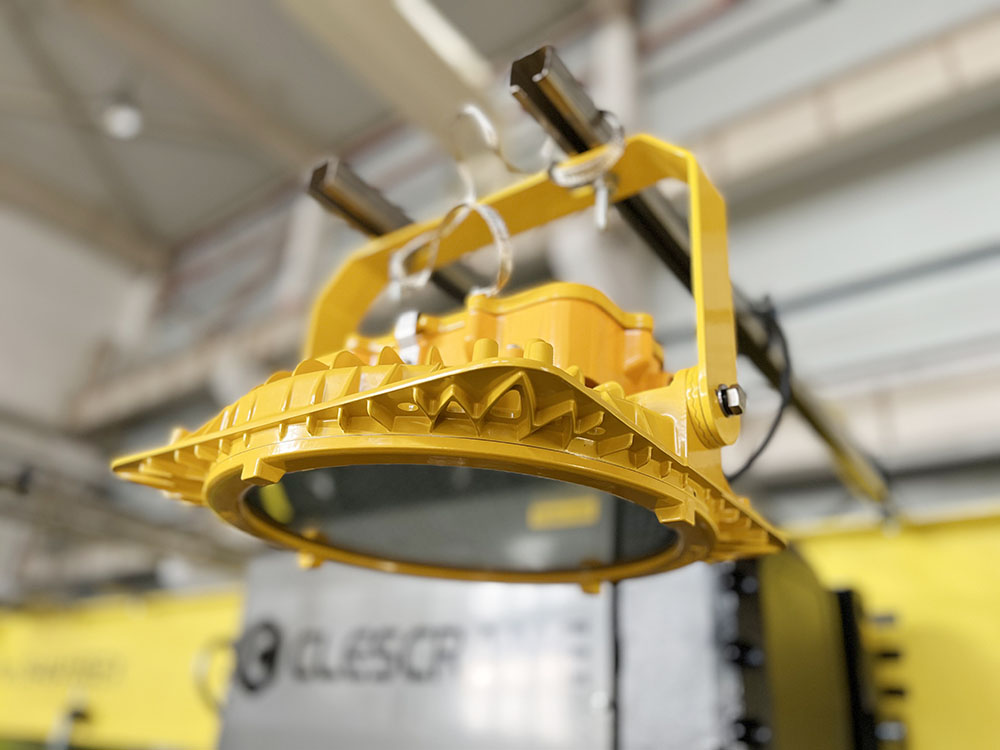

BFC8117 Explosion-proof LED ANTI-SEISMIC Floodlights

1. Suitable for Zone 1 applications
2. Degree of protection: IP 66
3. LED light source providing high luminous efficacy and long service life
4. Designed with a dimmer interface (DC 0 - 10 V)
5. Multiple mounting options such as seat mounting, wall mounting and ceiling mounting

Overview

Certification
International approvals	ATEX, CCC, CNEX
Coding	II 2 G Ex db eb mb IIC T4 Gb, II 2 D Ex tb IIIC T130ºС Db
Conformity to standards	IEC 60079 / IEC 60598
Material
Body material	Aluminum alloy with epoxy powder coating
Diffuser	Polycabonate
Light source
Wattage Type	200 W, 400 W LED
Luminous flux	140 lm / W
Life	50000 h
Rated voltage	220 V - 240 V AC 50 Hz / 60 Hz
Class of insulation	Class I
Degree of protection	IP 66
Operating temperature	-20 ºC to +55 ºC
Cable entry	G3/4
Corrosion-proof class	WF2

Model	Lamp power	Lamp type	Operating current	Color temperature	Weight
Model	(W)	(W)	(A)	(K)	(kg)
BFC8117/200/LED	200	LED	3.6	5700 (cool white)	11.0 ± 1
BFC8117/400/LED	2 × 200	LED	3.6	5700 (cool white)	22.0 ± 1
