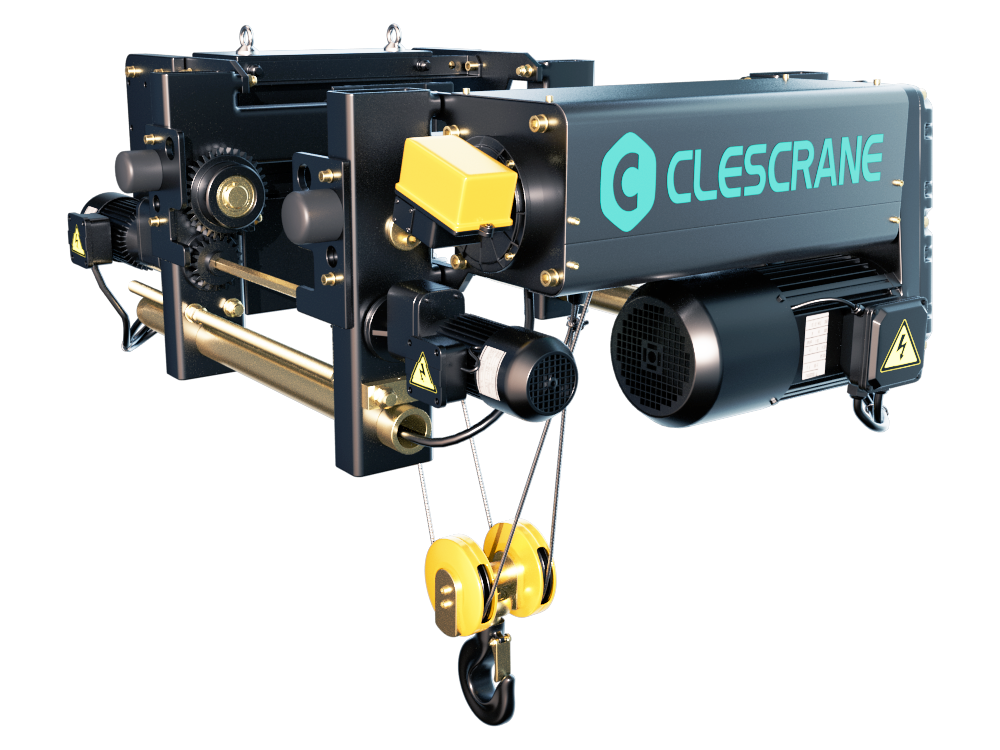

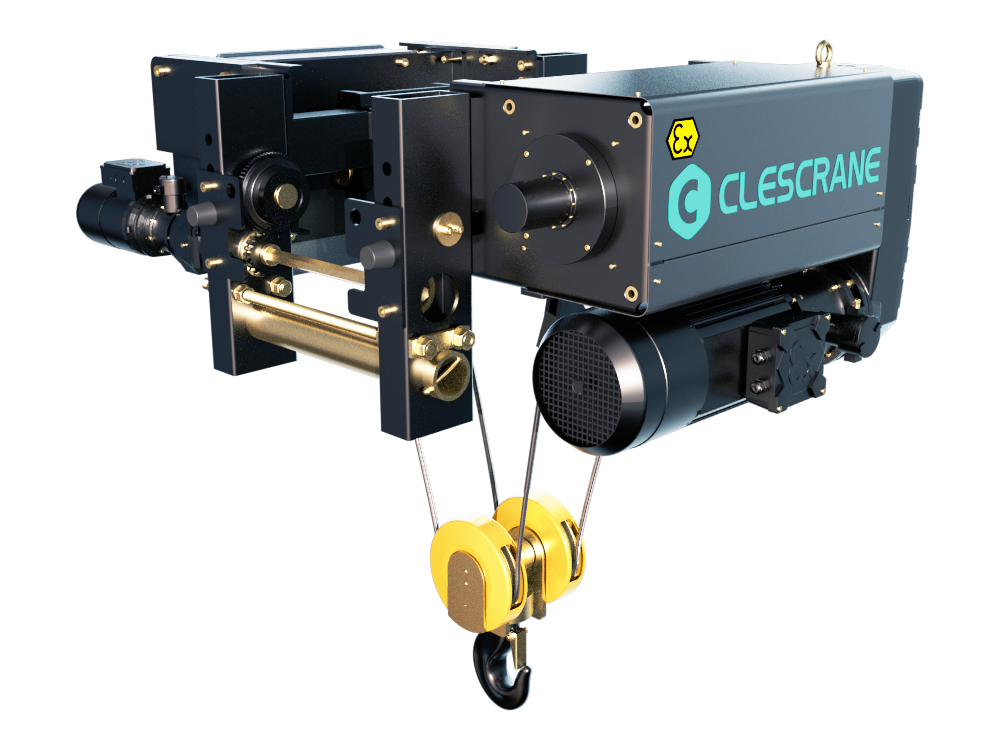

CH Series Wire Rope Electric Hoist ( for Single Girder Crane )
Lifting capacity: 1 000kg~ 20 000kg
Working class: 1Am, 2m, 3m
According to your special needs, we can provide many optional features, such as higher lifting height, different lifting speed, adapting different girder type, customized hook, anti-sway, dual-brake ,load display and so on.
You can change the optional features as your needs change. We help you lift the way you want to.
Overview
CH-B Series Wire Rope Electric Hoist ( for single girder crane ):
Lifting Capacity: 1-20t
1.Pole changing double-speed motor hoisting with Three-in-One structure, Stable and reliable operation, small volume.
2.Highly efficient electric motor with hard tooth surface reducer, to achieve the low energy consumption and large output torque.
3.The electromagnetic brake can adjust itself automatically with high precision, to achieve fast and reliable braking with low noise.
4.The steel wire rope with high strength and high flexibility, to achieve greater and safer lifting.
5.High strength nylon rope guide and pulley, its self-lubricating help to achieve a longer service life of the steel wire rope.
6.High strength alloy wheel group, to achieve a long service life for the wheels.
7.Modular design to realize the flexible combination.
8.The maximum lifting capacity of the single-girder is 20 t, the maximum lifting capacity of the double-girder can reach to 100 t
Range of application
Machine processing, steel production, material supply or any other lifting and handling occasions.
Options for CH wire rope hoist.
1. Wheel gauge of single girder hoist can be customized to 550mm-- 690mm. And wheel width of double girder hoist can be customized (not bigger than 15% of the standard wheel width).
2.Double girder hoist track gauge (1400-1700-2000-2400-2700-3100-3400-3800mm). The gauge can be customized and will influence the price.
3.The hoist equipped with monorail crane can choose CH-R series standard clearance hoist or CH-B series low clearance hoist according to girder type; If there is a turning part in the track, the CH-R series standard clearance hoist must be selected, and the trolley has turning function, with a maximum turning radius of 2m.
4.1-step( standard) or 2-step( optional) cross travel limits are available for single girder trolley, while the standard for double girder trolley is 2-step cross travel limits. 5.The brand of Pendant control is Schneider or GG, standard 8 keys, with additional functions for selection which will influence the price.
6.Hooks can be customized for 360°electric rotary hooks.
7.Hook size can be customized.
8.Monitoring unit is optional, with single mechanism or multi mechanisms( for the crane). Its function is to record the total starting times, total emergency stop times, total working time, lifting motor working time, safe working cycle of brake pads, overload times, etc.. The brand cannot be specified. The advantage is to help users understand the working status of the hoist and/ or crane and facilitate maintenance work. Highly recommended.
9.Display of lifting load is available with letter sizes of 500*230mm or 900*230mm. It is usually installed on main girder or end beam to show the lifting weight when the crane is lifting. The brand cannot be specified.
10. Measures for humid environment:
a. Heating and dehumidification of motor and/ or electric panel
b. Stainless steel electric panel
c. Stainless steel hoist shell.
11. Measures for outdoor environment:
a. Heating and dehumidification of motor and/ or electric panel
b. Rain cover
12. The second lifting limit, i.e. the heavy hammer limiting device (started by hook), is optional. The brand cannot be specified. The function is that when the lifting limit is out of effect, the hook will touch the heavy hammer limit when it continues to lift, which can play the function of twice rising limit protection. The advantage is that the double lifting limit makes the use of equipment safer.
13. Double brake for hoisting. The function is that when one of the brakes is damaged, another brake can ensure the braking of the equipment. The advantage is that the double braking makes the use of the equipment safer.
14. Double lifting speed can be changed into frequency converting control. The function is: a. the lifting up and down process is relatively gentle, and the impact is small; B. the speed is adjustable. The function is recommended when
● Lifting synchronously with other equipment
● The anti-sway function is added
● The ESR function is added
● Lifting valuable goods
15.Anti-sway function is optional, but only the Schneider frequency converter is available. The function is to prevent the suspended object from swinging in the process of handling.
The function is recommended when
● Lifting valuable goods
● Lifting liquid goods
● Lifting dangerous goods
16.The inching function is optional, which is used for accurate movement. The function is recommended when
● Equipment installation or assembly
17.The standard control voltage is 48V, and the control voltage can be changed to 24V / 36V / 110V according to customer requirements
Clescrane CH series wire rope hoists feature high handling rates, cost-effective operation and maximum safety. We offer the optimum solution to meet our customers' specific requirements.
According to your special needs, we can provide many optional features, such as higher lifting height, different lifting speed, adapting different girder type, customized hook, anti-sway, dual-brake ,load display and so on.
You can change the optional features as your needs change. We help you lift the way you want to.
CH-B series single girder low headroom electric hoist
Lifting capacity: 1~20t
This series wire rope hoist is the most common low headroom hoist with small hook limit. It meets your lifting height requirements and at the same time it can help you with lowering the factory construction height, to save your investment cost.
CH-K series fast lifting type
Lifting capacity: 1~10t
The pulley rate of this series hoist is 2/1, and the lifting speed can be 10/1.6m/min. stress relief device is equipped to avoid the twisting of wire rope.
CH-P series hoist with double travel motors
Lifting capacity: 1~20t
Innovations of the cross trolley traveling mechanism: Adopts dual-drive three-in-one drive. The three-in-one drive is connected directly to the active wheel, eliminating the drive gear wheel and connecting rod structure.
For some countries which is in the conduct of Australia standard for crane, the wheel section need add the requirement of safety cover. This improvement will be good for promotion of our business in the region.
CH-R series standard headroom type
Lifting capacity: 1~32t
This series hoist suits for I beam.

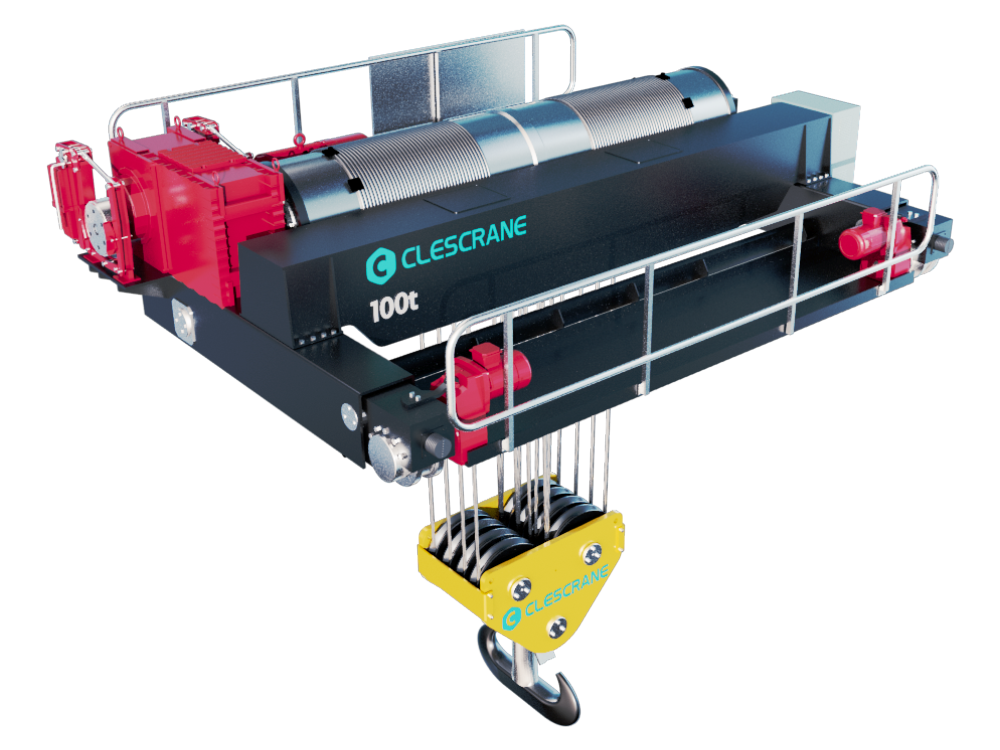

CH-G fixed type
Lifting capacity: 1~100t
This series hoist can't move without trolley driven mechanism.
CH-S side mounted type
Lifting capacity: 1~10t
This series hoist is installed on one side of the girder and the wire rope drum and hook are placed on the other side. The max span can be 35m. This design can maximize use the existing room height to get the highest lifting height. The big span can effectively reduce the load on crane rails and workshop structure.
You can contact us ( inquiry@clescrane.com ) if you have questions or need help along the way.
Lifting Capacity: 1-20t
1.Pole changing double-speed motor hoisting with Three-in-One structure, Stable and reliable operation, small volume.
2.Highly efficient electric motor with hard tooth surface reducer, to achieve the low energy consumption and large output torque.
3.The electromagnetic brake can adjust itself automatically with high precision, to achieve fast and reliable braking with low noise.
4.The steel wire rope with high strength and high flexibility, to achieve greater and safer lifting.
5.High strength nylon rope guide and pulley, its self-lubricating help to achieve a longer service life of the steel wire rope.
6.High strength alloy wheel group, to achieve a long service life for the wheels.
7.Modular design to realize the flexible combination.
8.The maximum lifting capacity of the single-girder is 20 t, the maximum lifting capacity of the double-girder can reach to 100 t
Range of application
Machine processing, steel production, material supply or any other lifting and handling occasions.
Options for CH wire rope hoist.
1. Wheel gauge of single girder hoist can be customized to 550mm-- 690mm. And wheel width of double girder hoist can be customized (not bigger than 15% of the standard wheel width).
2.Double girder hoist track gauge (1400-1700-2000-2400-2700-3100-3400-3800mm). The gauge can be customized and will influence the price.
3.The hoist equipped with monorail crane can choose CH-R series standard clearance hoist or CH-B series low clearance hoist according to girder type; If there is a turning part in the track, the CH-R series standard clearance hoist must be selected, and the trolley has turning function, with a maximum turning radius of 2m.
4.1-step( standard) or 2-step( optional) cross travel limits are available for single girder trolley, while the standard for double girder trolley is 2-step cross travel limits. 5.The brand of Pendant control is Schneider or GG, standard 8 keys, with additional functions for selection which will influence the price.
6.Hooks can be customized for 360°electric rotary hooks.
7.Hook size can be customized.
8.Monitoring unit is optional, with single mechanism or multi mechanisms( for the crane). Its function is to record the total starting times, total emergency stop times, total working time, lifting motor working time, safe working cycle of brake pads, overload times, etc.. The brand cannot be specified. The advantage is to help users understand the working status of the hoist and/ or crane and facilitate maintenance work. Highly recommended.
9.Display of lifting load is available with letter sizes of 500*230mm or 900*230mm. It is usually installed on main girder or end beam to show the lifting weight when the crane is lifting. The brand cannot be specified.
10. Measures for humid environment:
a. Heating and dehumidification of motor and/ or electric panel
b. Stainless steel electric panel
c. Stainless steel hoist shell.
11. Measures for outdoor environment:
a. Heating and dehumidification of motor and/ or electric panel
b. Rain cover
12. The second lifting limit, i.e. the heavy hammer limiting device (started by hook), is optional. The brand cannot be specified. The function is that when the lifting limit is out of effect, the hook will touch the heavy hammer limit when it continues to lift, which can play the function of twice rising limit protection. The advantage is that the double lifting limit makes the use of equipment safer.
13. Double brake for hoisting. The function is that when one of the brakes is damaged, another brake can ensure the braking of the equipment. The advantage is that the double braking makes the use of the equipment safer.
14. Double lifting speed can be changed into frequency converting control. The function is: a. the lifting up and down process is relatively gentle, and the impact is small; B. the speed is adjustable. The function is recommended when
● Lifting synchronously with other equipment
● The anti-sway function is added
● The ESR function is added
● Lifting valuable goods
15.Anti-sway function is optional, but only the Schneider frequency converter is available. The function is to prevent the suspended object from swinging in the process of handling.
The function is recommended when
● Lifting valuable goods
● Lifting liquid goods
● Lifting dangerous goods
16.The inching function is optional, which is used for accurate movement. The function is recommended when
● Equipment installation or assembly
17.The standard control voltage is 48V, and the control voltage can be changed to 24V / 36V / 110V according to customer requirements
Clescrane CH series wire rope hoists feature high handling rates, cost-effective operation and maximum safety. We offer the optimum solution to meet our customers' specific requirements.
According to your special needs, we can provide many optional features, such as higher lifting height, different lifting speed, adapting different girder type, customized hook, anti-sway, dual-brake ,load display and so on.
You can change the optional features as your needs change. We help you lift the way you want to.
CH-B series single girder low headroom electric hoist
Lifting capacity: 1~20t
This series wire rope hoist is the most common low headroom hoist with small hook limit. It meets your lifting height requirements and at the same time it can help you with lowering the factory construction height, to save your investment cost.
CH-K series fast lifting type
Lifting capacity: 1~10t
The pulley rate of this series hoist is 2/1, and the lifting speed can be 10/1.6m/min. stress relief device is equipped to avoid the twisting of wire rope.
CH-P series hoist with double travel motors
Lifting capacity: 1~20t
Innovations of the cross trolley traveling mechanism: Adopts dual-drive three-in-one drive. The three-in-one drive is connected directly to the active wheel, eliminating the drive gear wheel and connecting rod structure.
For some countries which is in the conduct of Australia standard for crane, the wheel section need add the requirement of safety cover. This improvement will be good for promotion of our business in the region.
CH-R series standard headroom type
Lifting capacity: 1~32t
This series hoist suits for I beam.
CH-G fixed type
Lifting capacity: 1~100t
This series hoist can't move without trolley driven mechanism.
CH-S side mounted type
Lifting capacity: 1~10t
This series hoist is installed on one side of the girder and the wire rope drum and hook are placed on the other side. The max span can be 35m. This design can maximize use the existing room height to get the highest lifting height. The big span can effectively reduce the load on crane rails and workshop structure.
| Lifting Capacity | ||||
| Lifting Height | 3.2t/5t/6.3t/8t | 10/12.5t | 15t/20t | |
| 6m | 30m | 31m | 32m | Length of Wire Rope |
| 9m | 42m | 43m | 44m | |
| 12m | 54m | 55m | 56m | |
| 15m | 66m | 67m | 68m | |
| 18m | 78m | 79m | 80m | |
You can contact us ( inquiry@clescrane.com ) if you have questions or need help along the way.
