Gas explosion-proof zones 1 & 2 and dust explosion-proof zones 21 & 22.
Explosion-proof level:

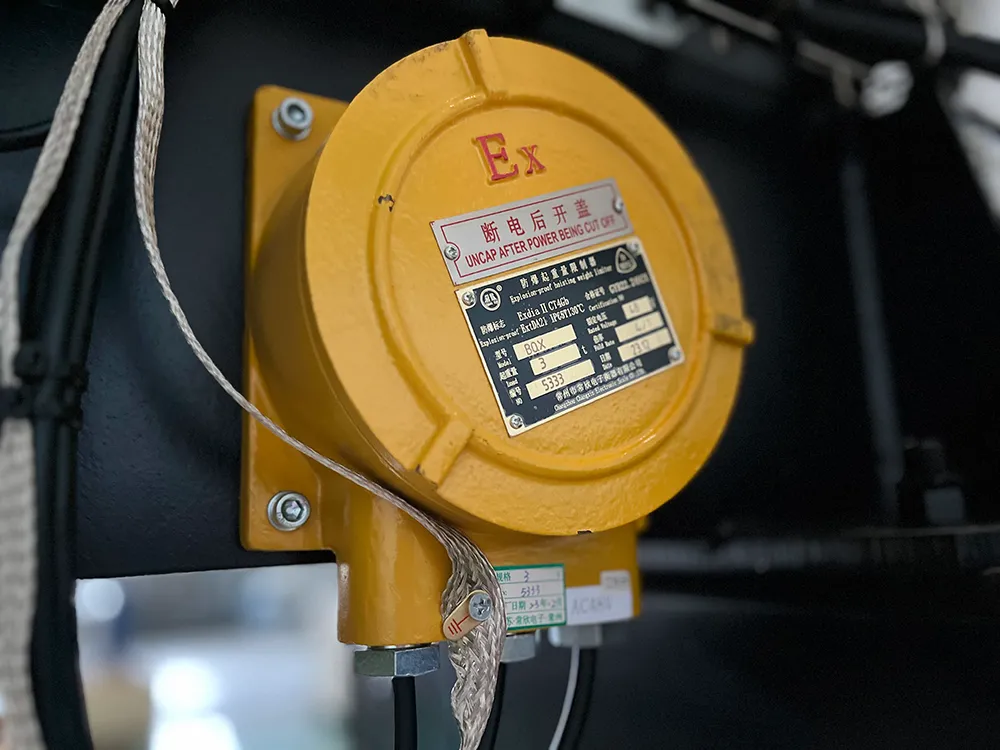

Gas explosion protection: II 2 G Ex db IIC T4 Gb
Dust explosion protection: II 2 D Ex tb lll T130°C Db
Working area: • Zone 1 IIB T4 • Zone 1 IIC T4 • Zone 2 IIB T3 • Zone 2 IIC T3 • Class I Division 1, Groups C and D, T4 • Class I Division 2, Groups B, C, D, T3.
1. Lifting capacity up to 63 tons.

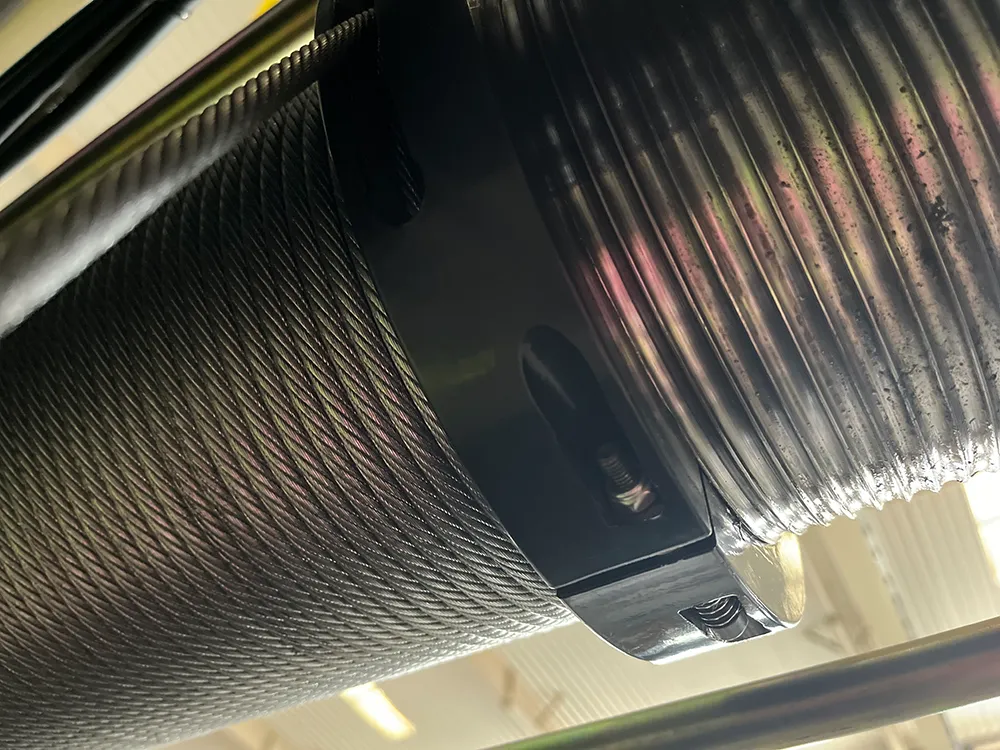

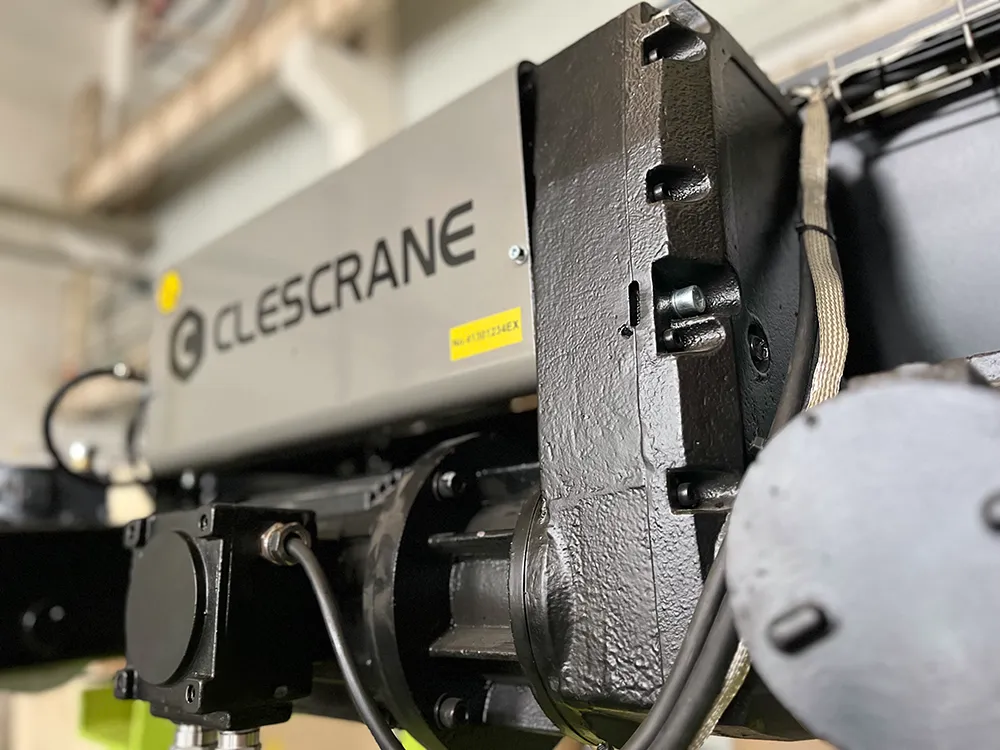

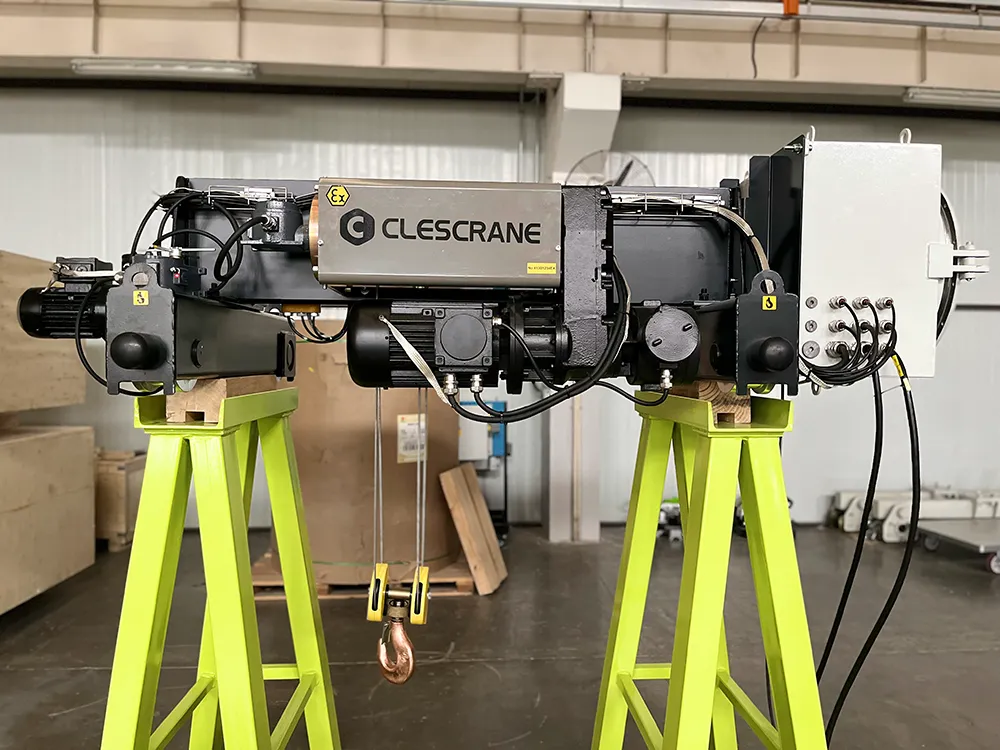

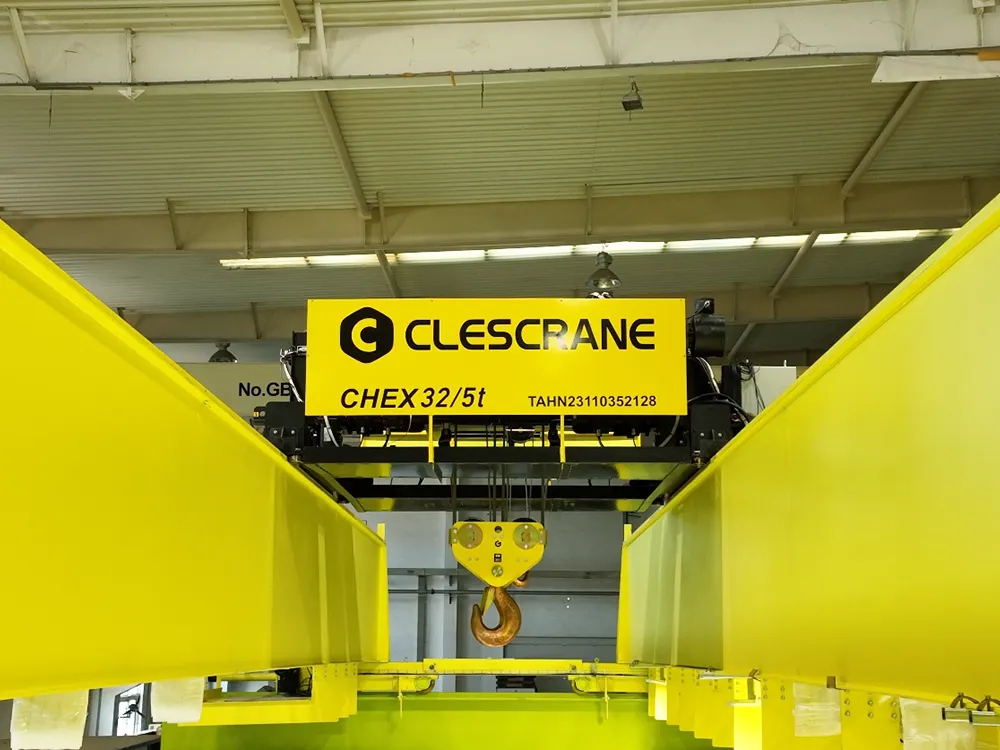

2. Compact design with CHEX explosion-proof wire rope hoist for max space utilization.
3. Min IP55 standard for electrical enclosure.

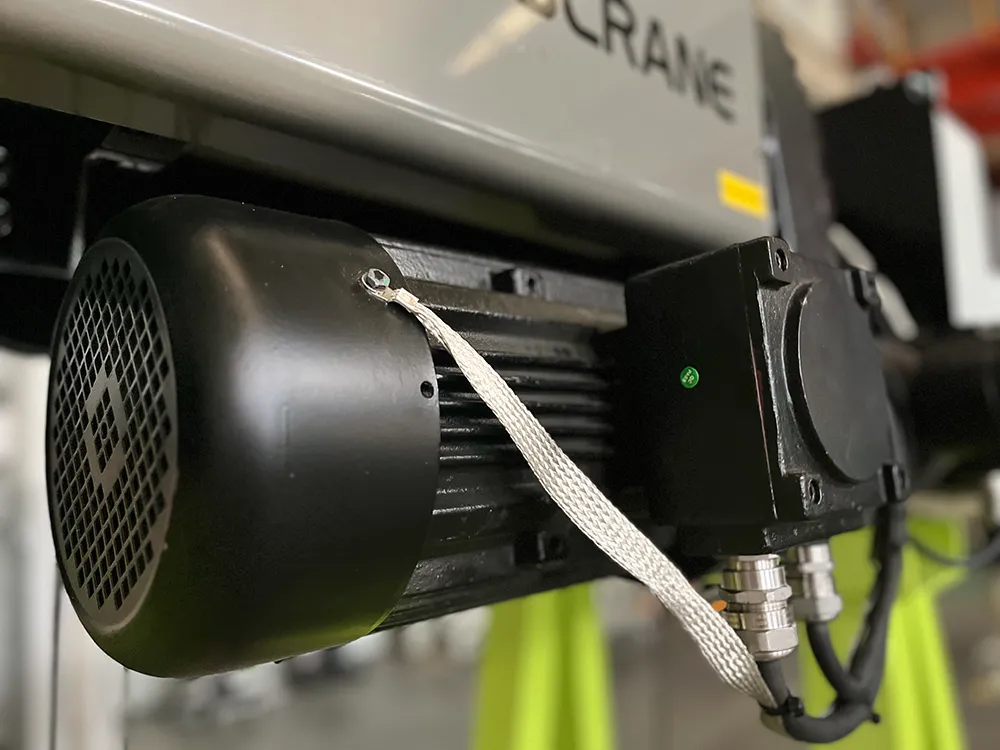

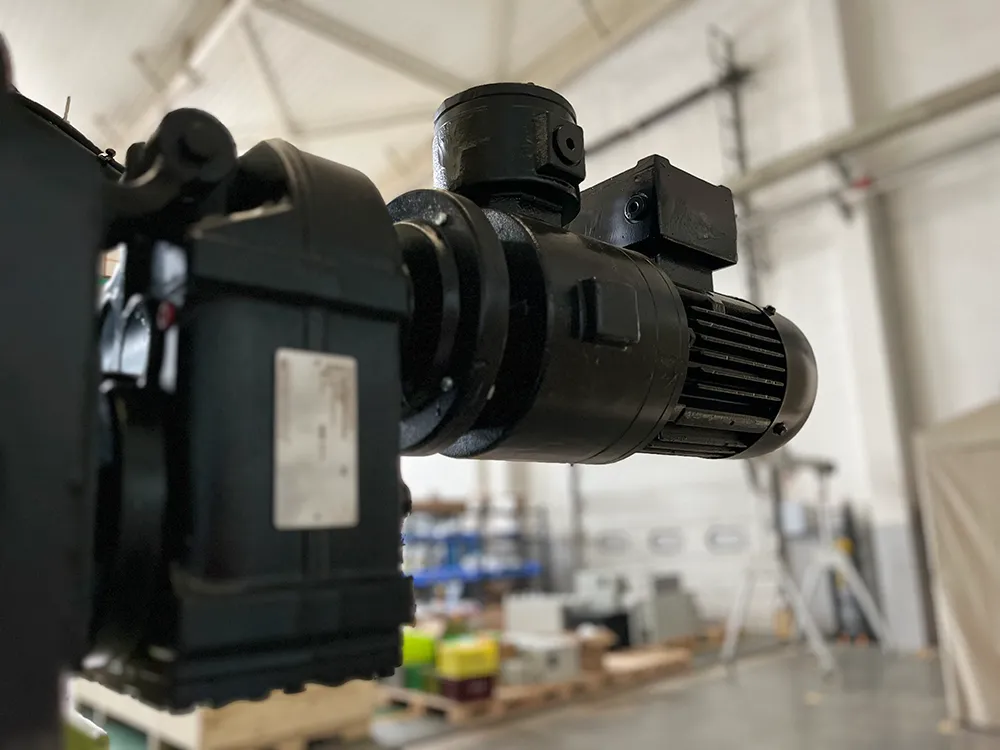

4. All motors equipped with insulation class F and temperature rise class B to provide longer service life.

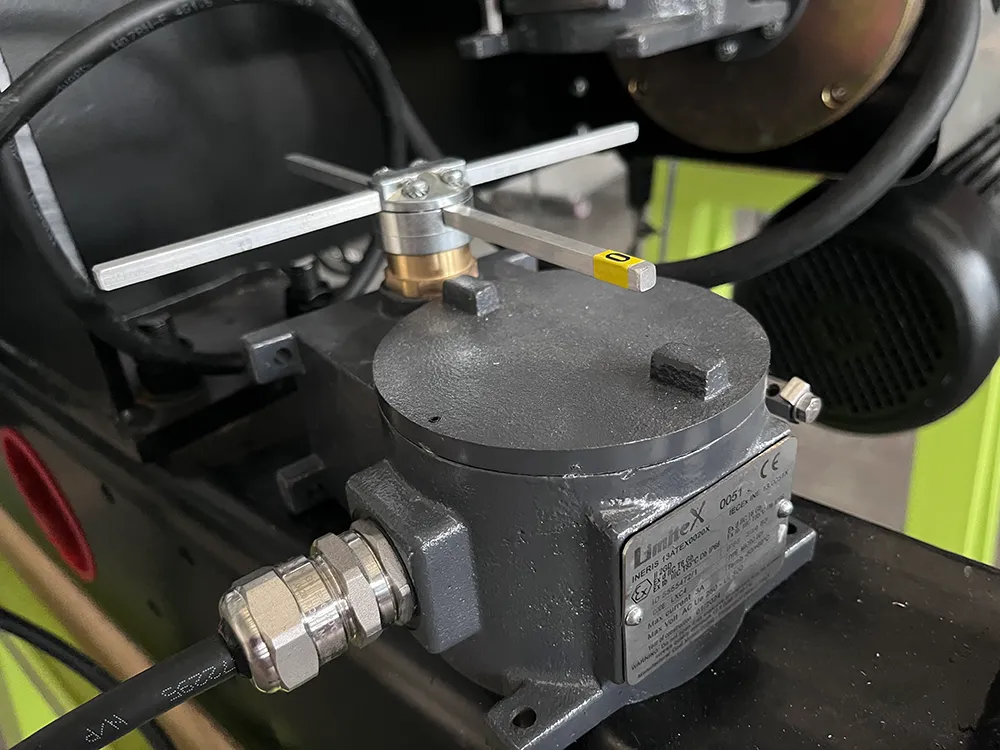

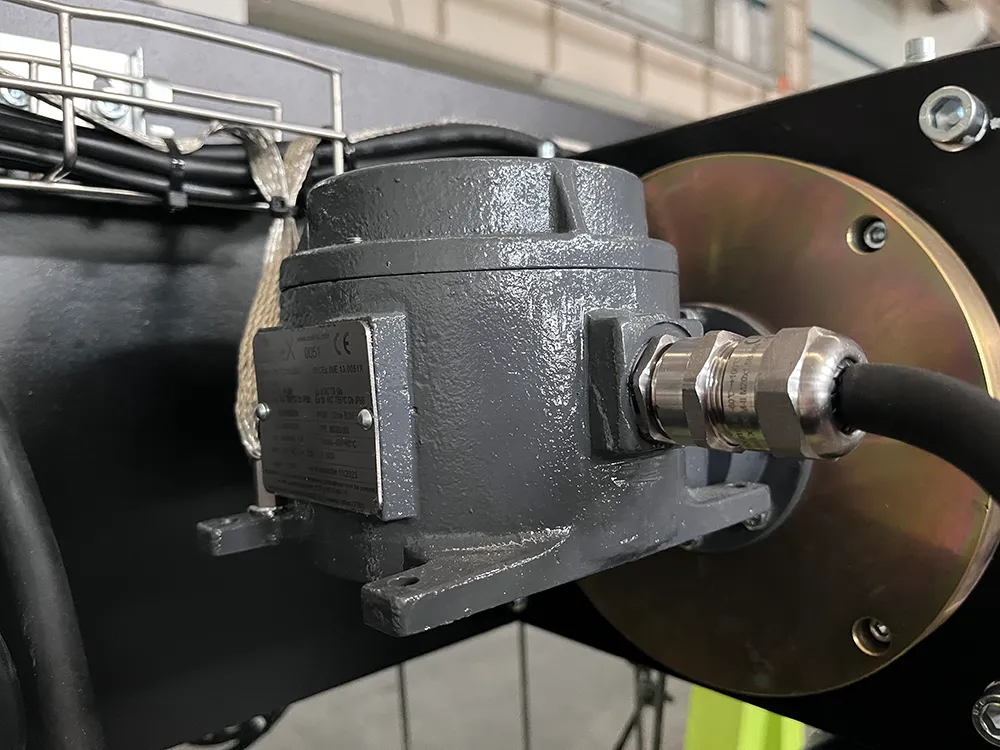

5. Automatically cut off the lifting action at the upper and lower positions.
6. Electronic overload protection with warning horn.
7. Noise level below 85 dB(A) at full load.
8. Double speeds through pole change for lifting.
9. Double speeds for long travel and cross travel. Achieve smooth and precise operation.
10. All motors have thermal protection function.
11. The brakes are asbestos-free and automatically activate in the event of a power outage.
12. Voltage: 380 V–460 V, 3p, 50–60 Hz, others on request.

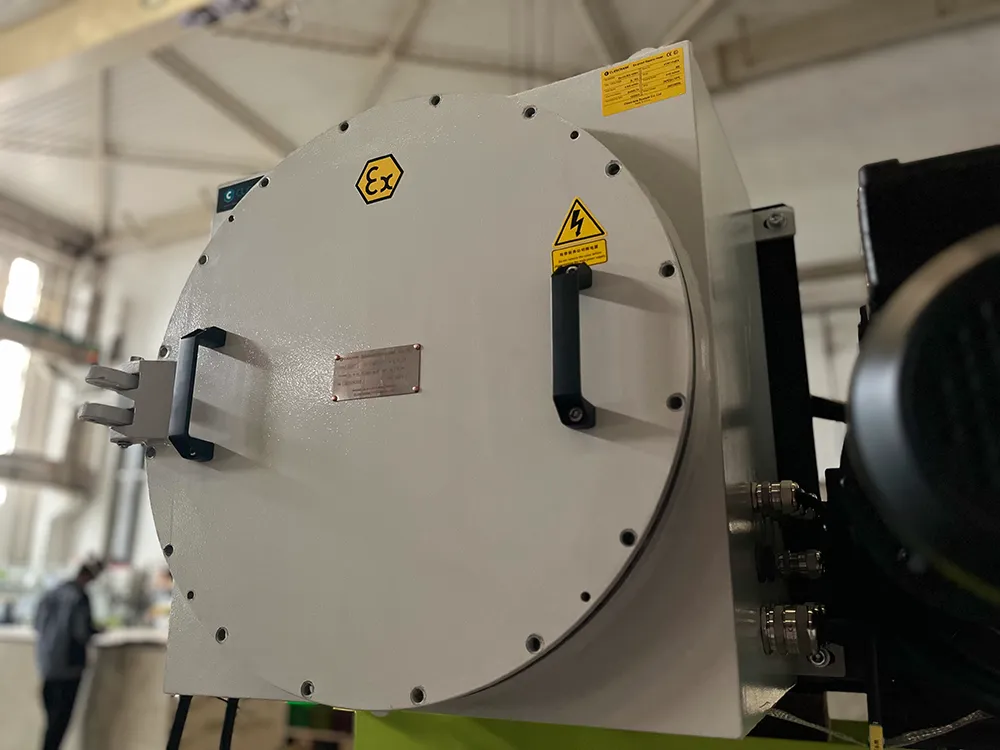

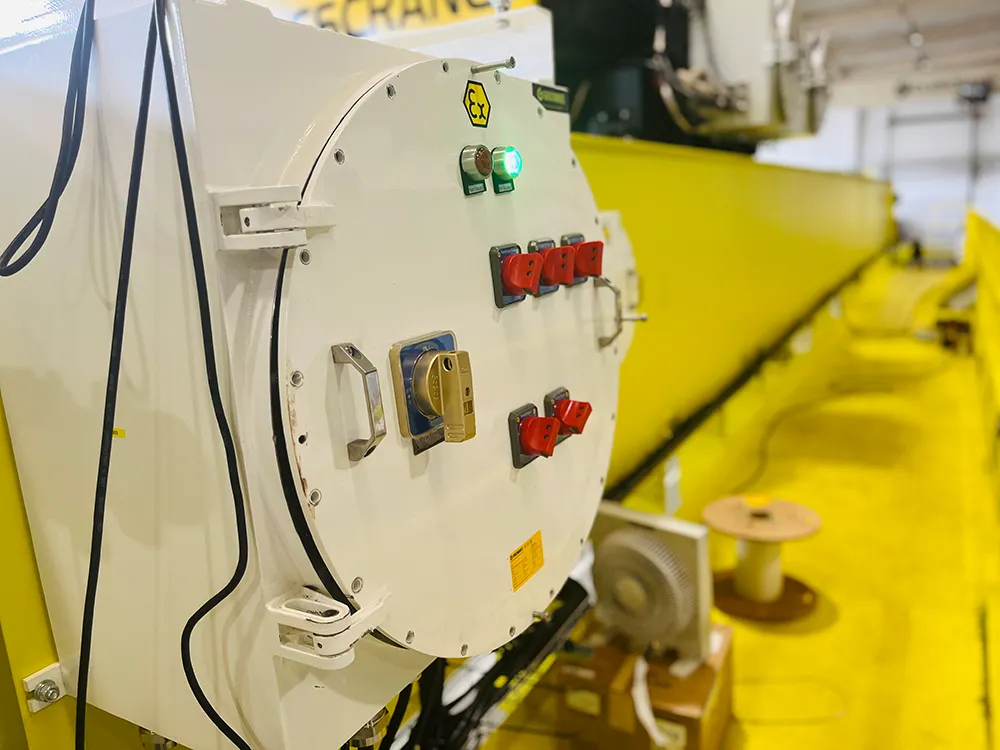

13. The enclosure IP66 protects against flammable dust or extreme weather conditions.

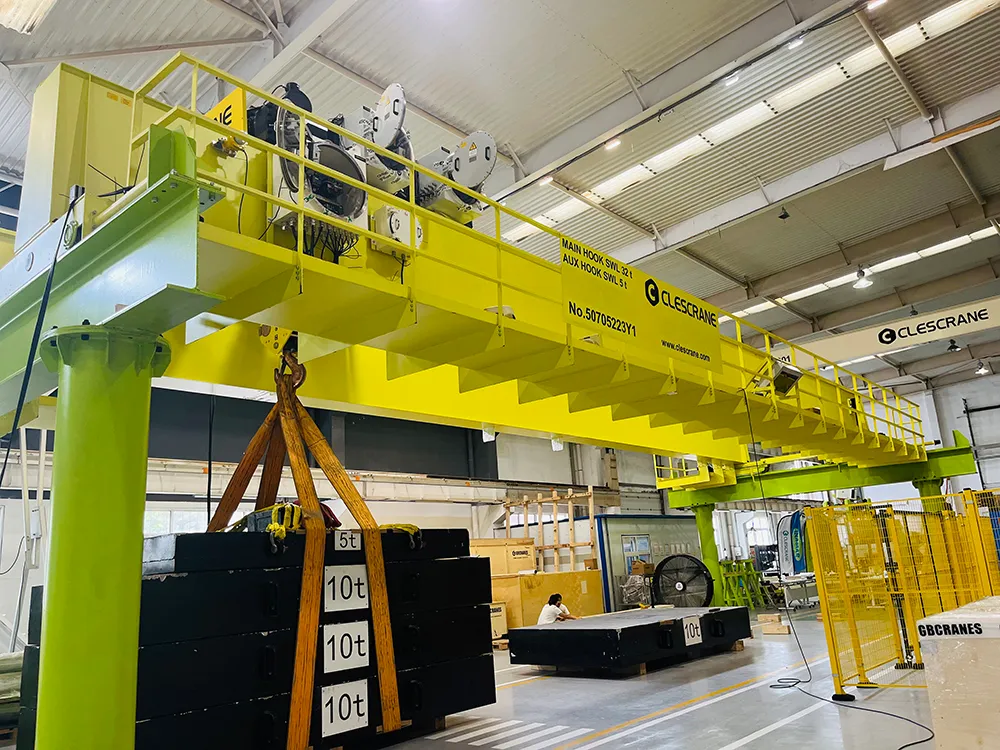

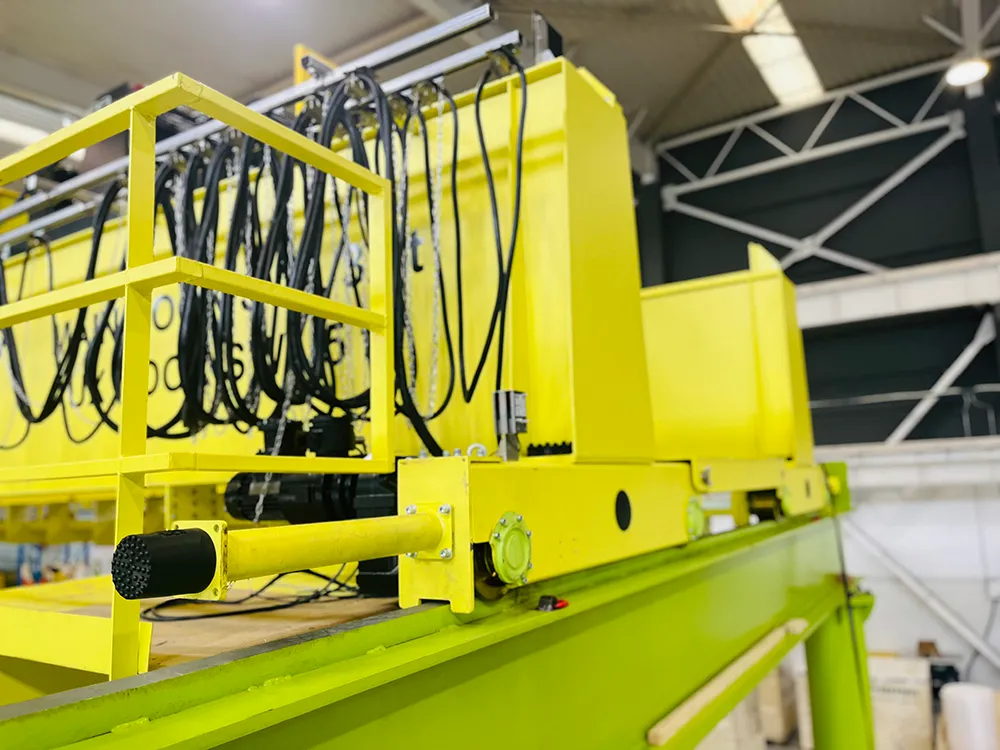

CLESCRANE EX-CHD explosion-proof crane offers operators and facilities the following advantages:
1. Fast delivery.
2. Comfortable operation.
3. Easy maintenance.
4. Detailed accompanying manual.
5. Continuous and stable spare parts supply.
6. All hoists and crane systems are fully tested to ensure reliability and safety.
Class A – This denotes standby or infrequent usage, such as cranes found in power utilities or motor rooms, where precise handling of equipment at slow speeds with long idle periods between lifts occurs.
Class B – This denotes light service, such as cranes used in repair shops or light warehousing, at slow speeds, with up to five lifts per hour up to maximum rated capacity.
Class C – This is for moderate service, such as those cranes installed in machine shops, including handling an average of 50% of the rated capacity up to 10 times per hour.
Class D – This is for denoting heavy service, such as cranes deployed in heavy machine shops, foundries, container yards, and more, where loads of 50% of the rated capacity are handled constantly.
Class E – This is for severe service, such as cranes found in scrap yards, cement mills, lumber mills, and more, where the crane makes 20 or more lifts per hour at or near its rated capacity.
Class F – This denotes continuous severe service, including custom-designed specialty cranes, that handle loads approaching the maximum rated capacity non-stop under extreme conditions.
