Warranty period:
3 Years

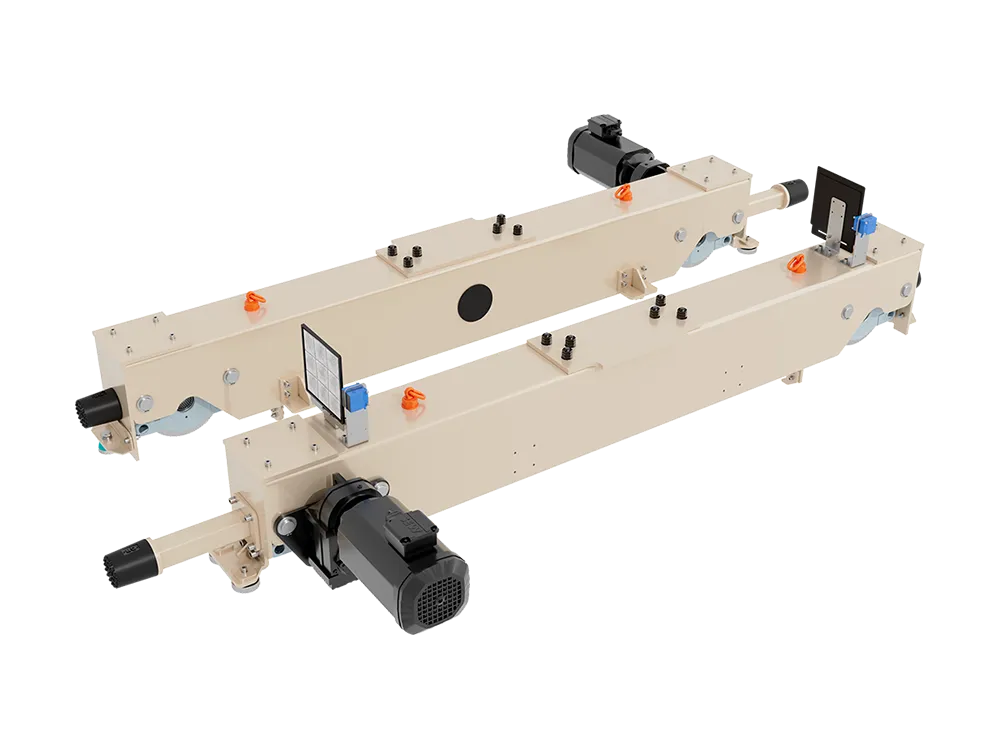

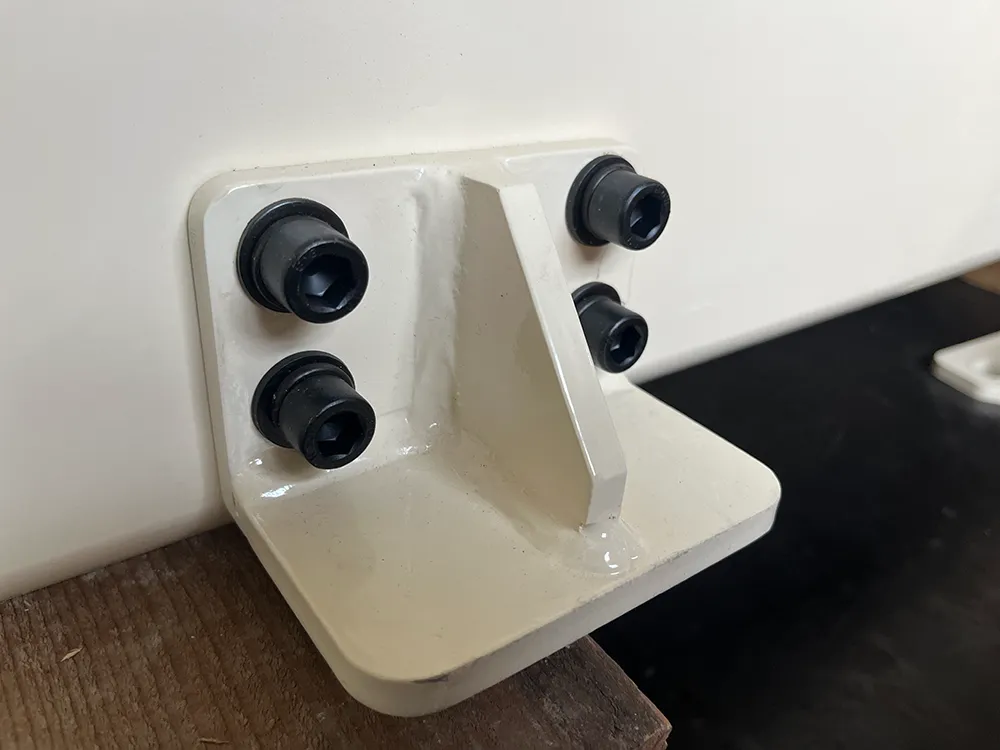

The end carriages are primed in the factory and offer versatile connection options; they are a reliable component both for new installations and for upgrades.

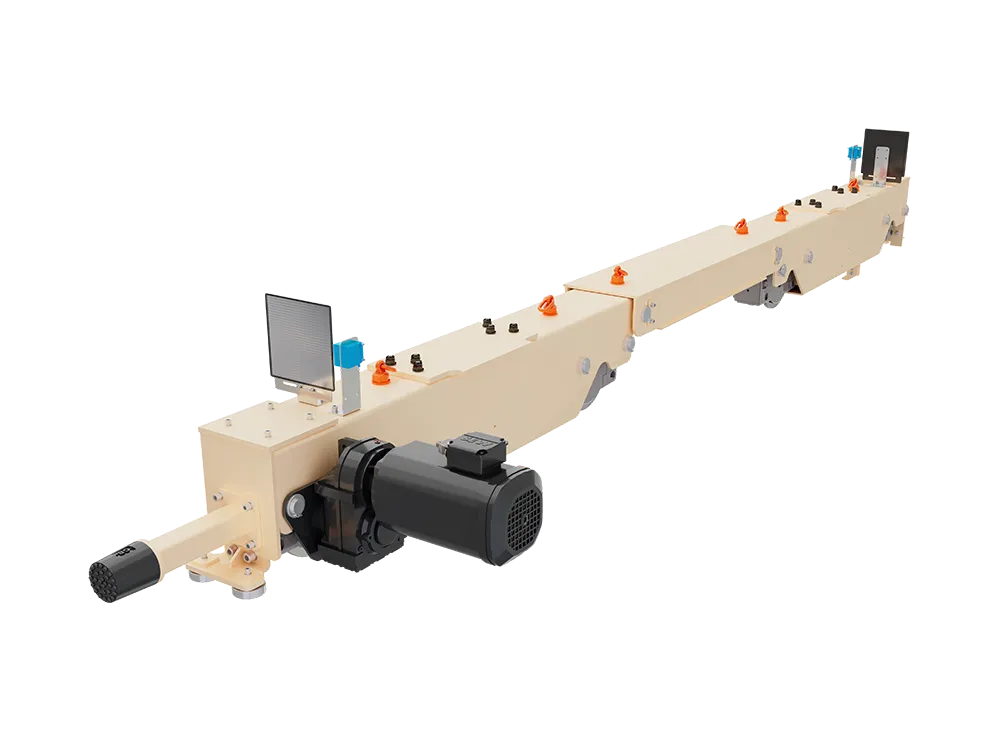

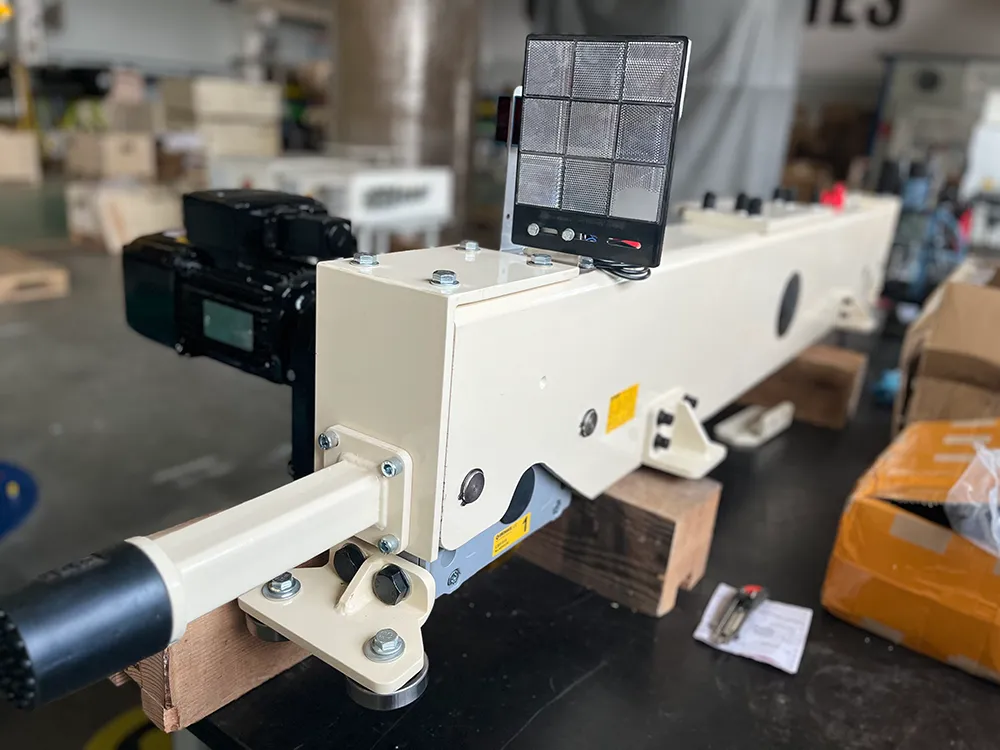

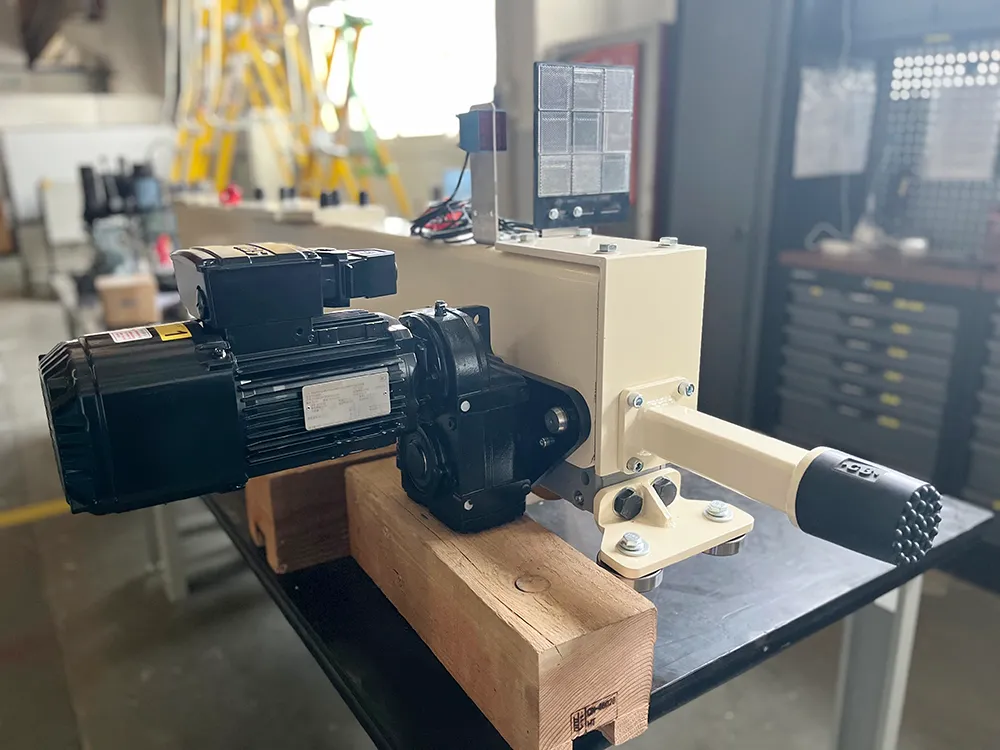

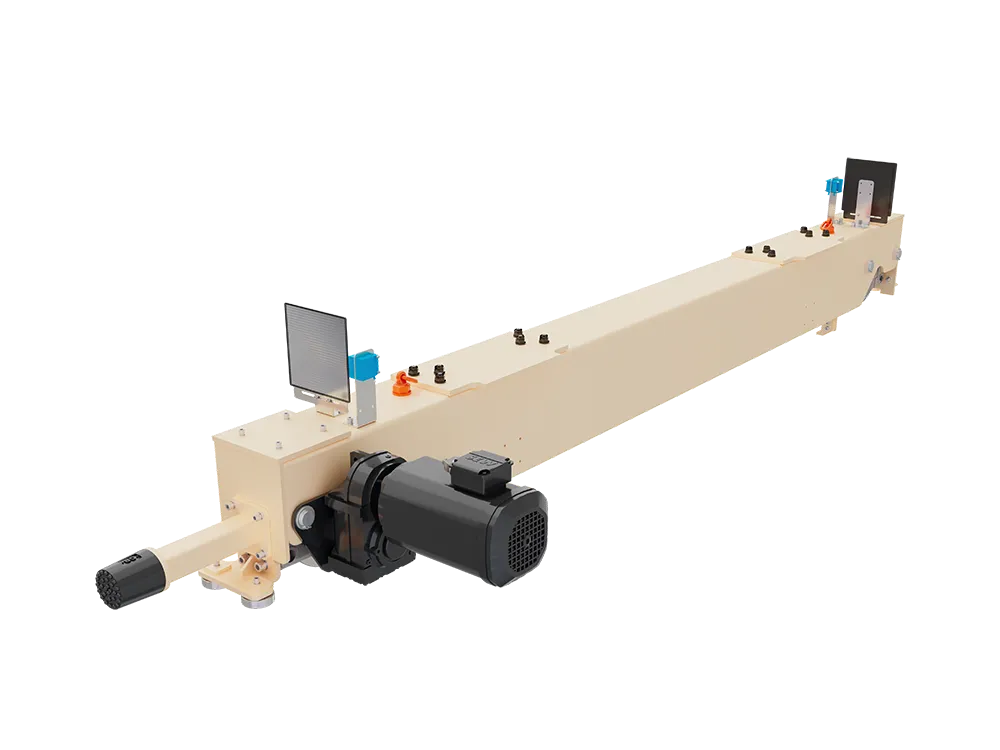

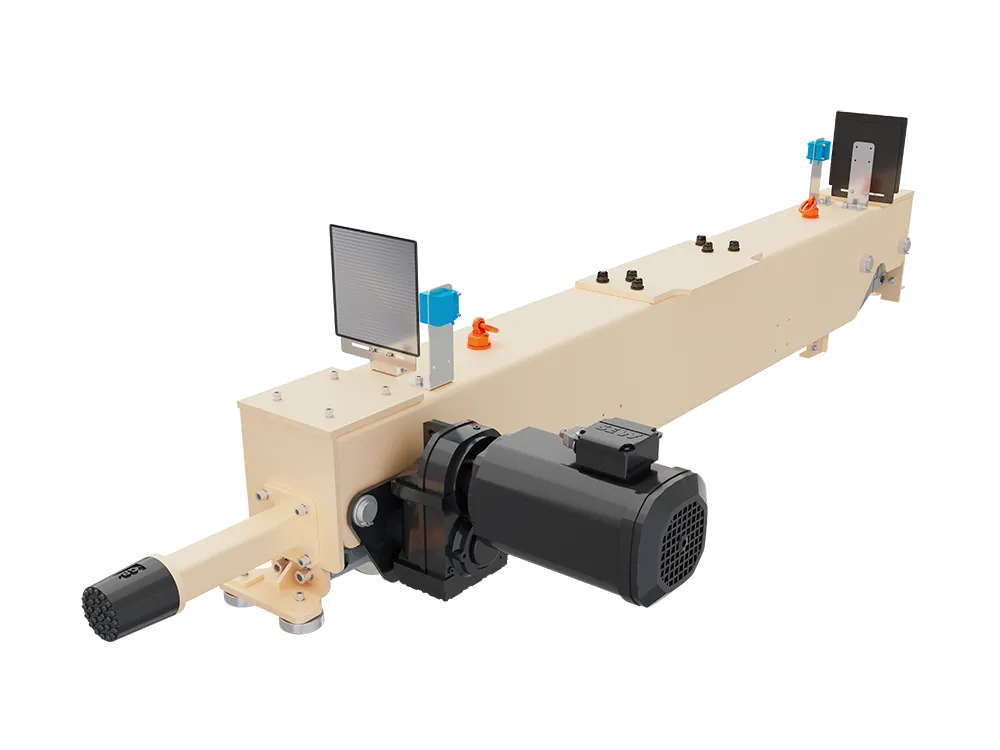

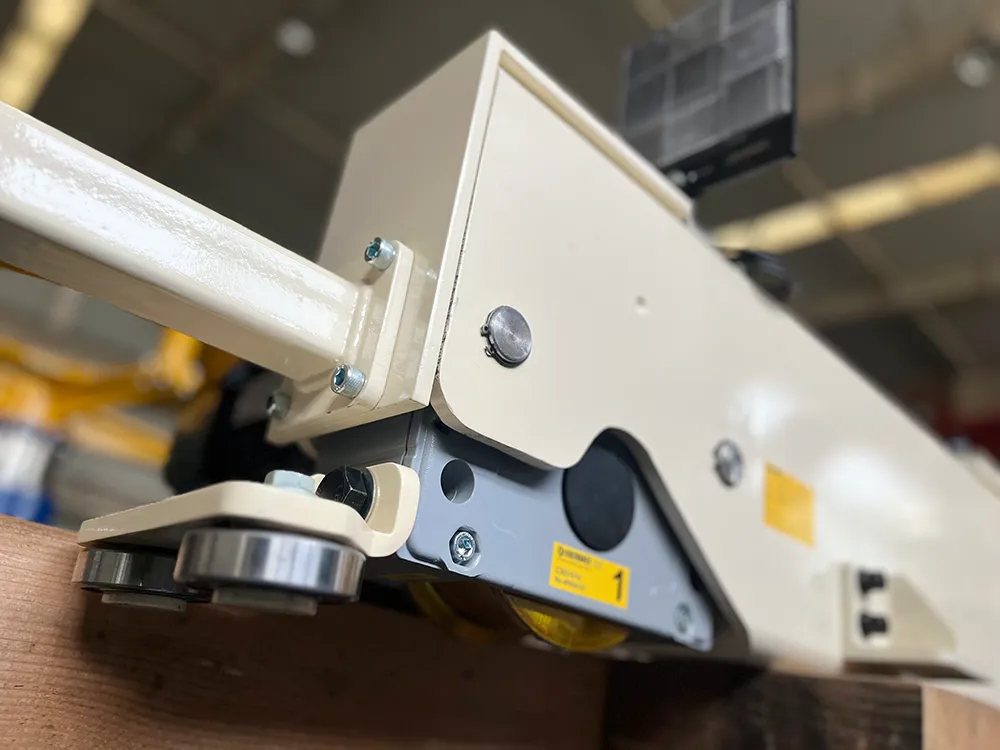

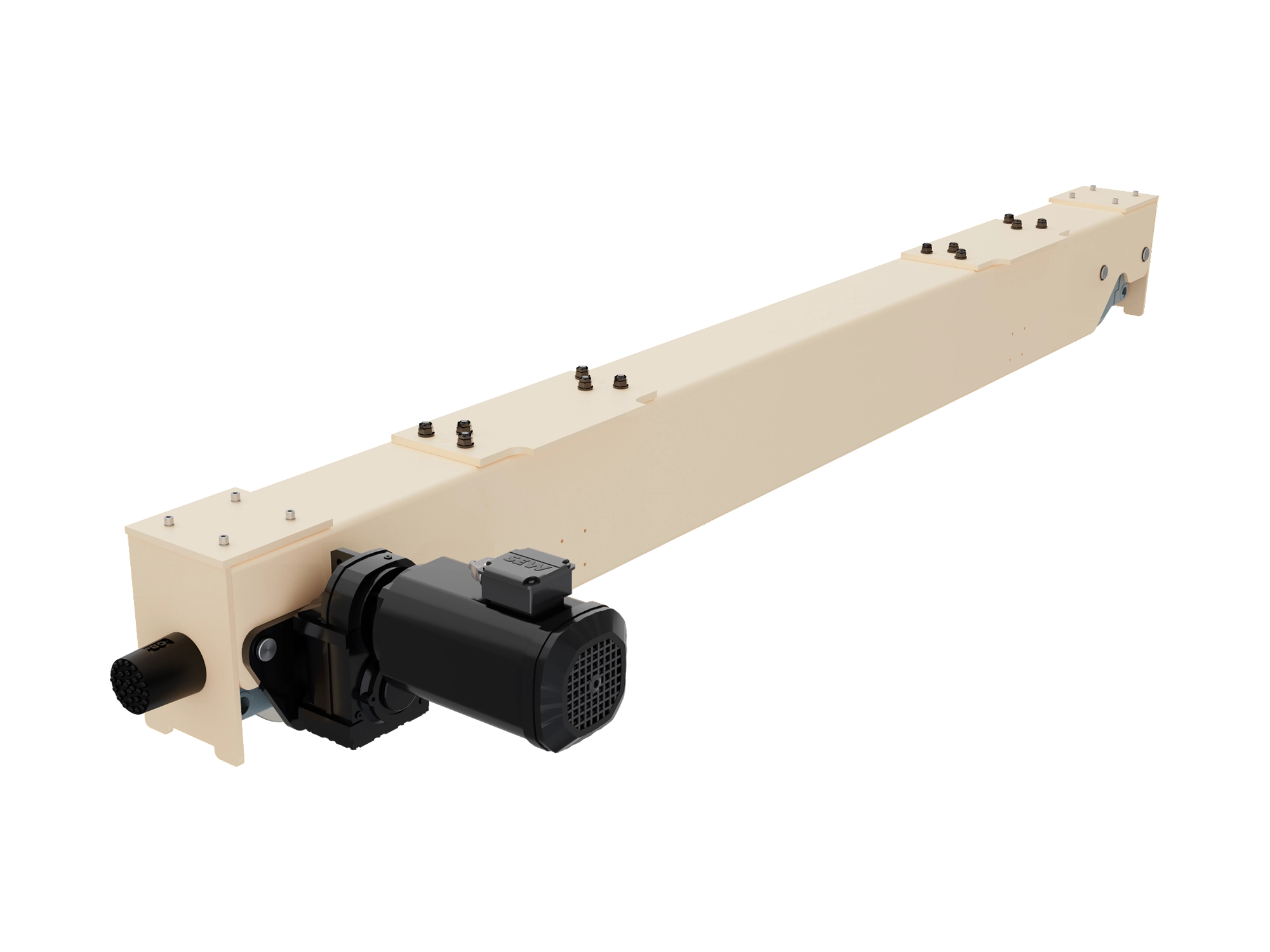

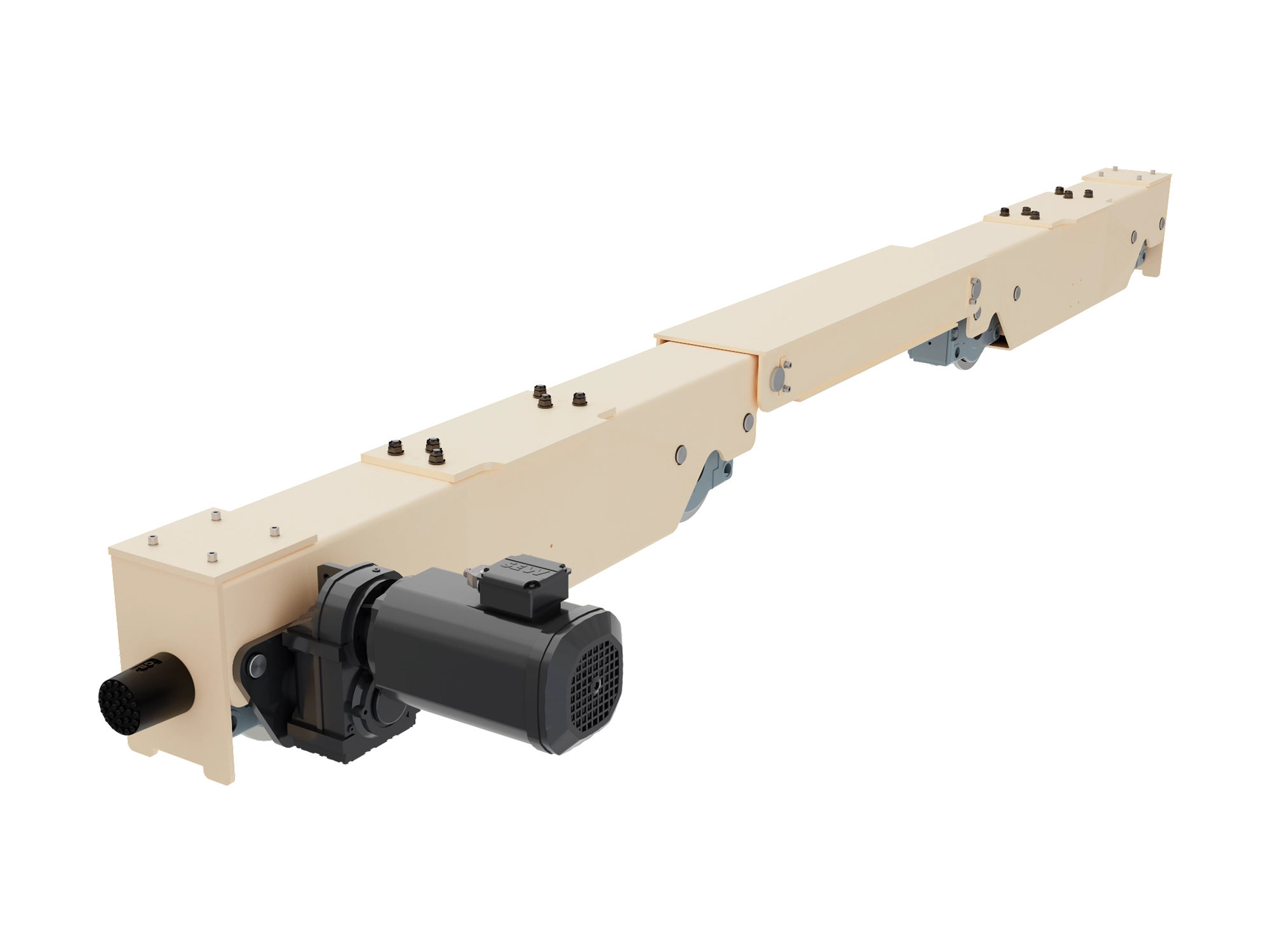

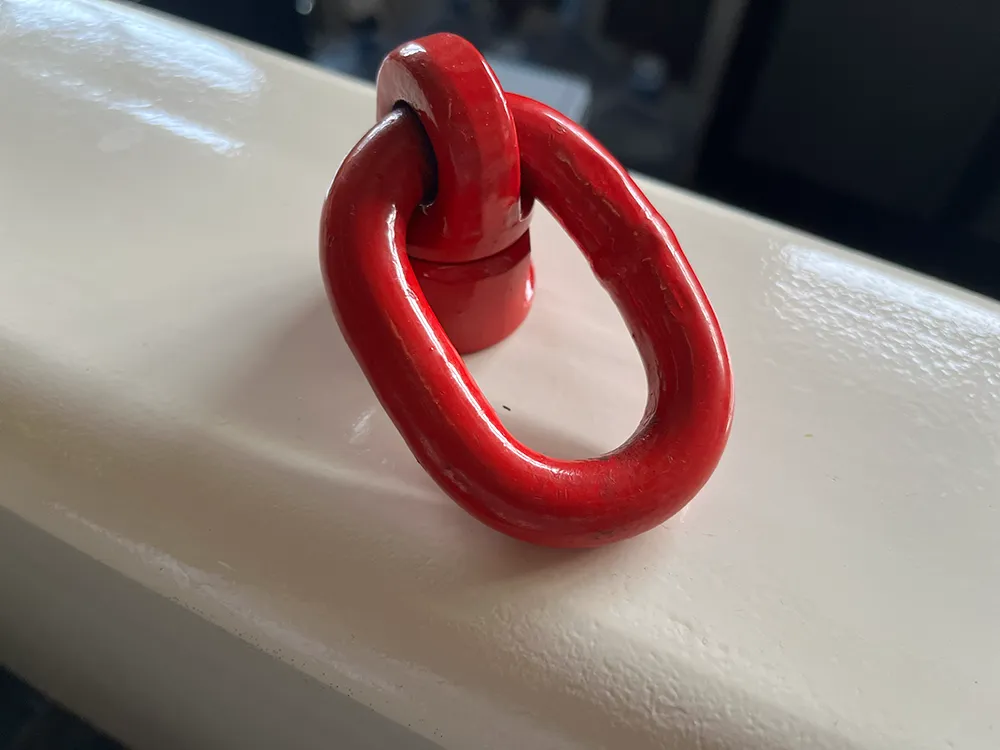

The end carriages consist of a torsionally rigid box section, our wheel blocks and one of our geared motors. They are available for overhead and underslung cranes.

CONTACT OUR TEAM TODAY

inquiry@clescrane.com

Consulting Online

+86 13523501202

IMAGES & VIDEOS

INTRODUCTION

Overview

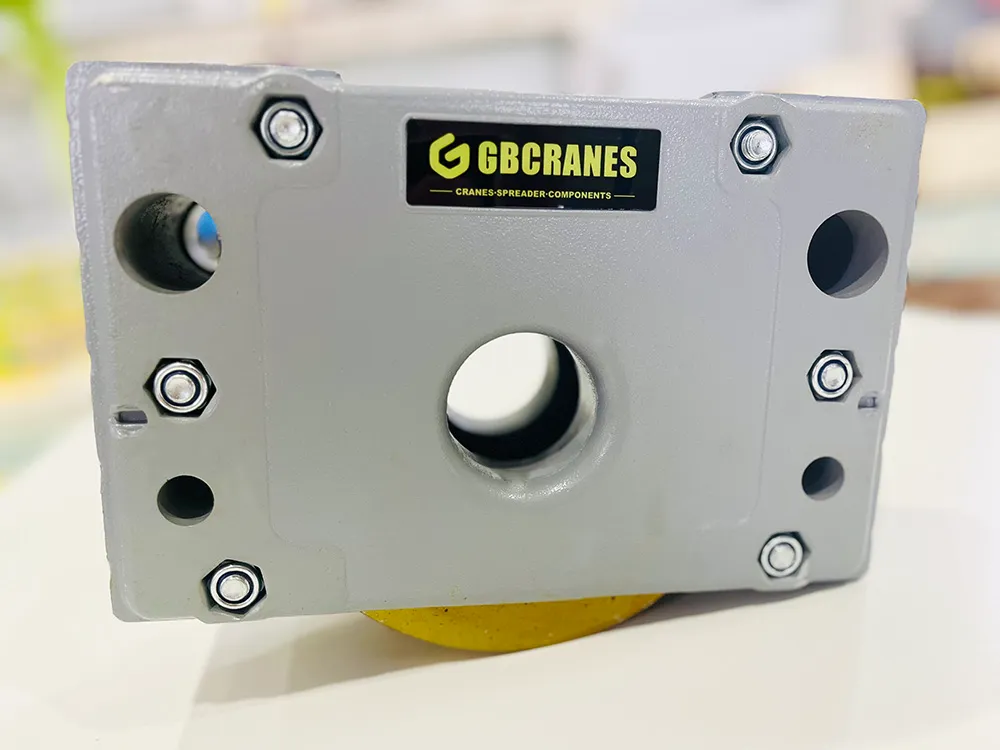

1. CB series end carrige wheels use GWS wheel group with a pin-type assembly method.

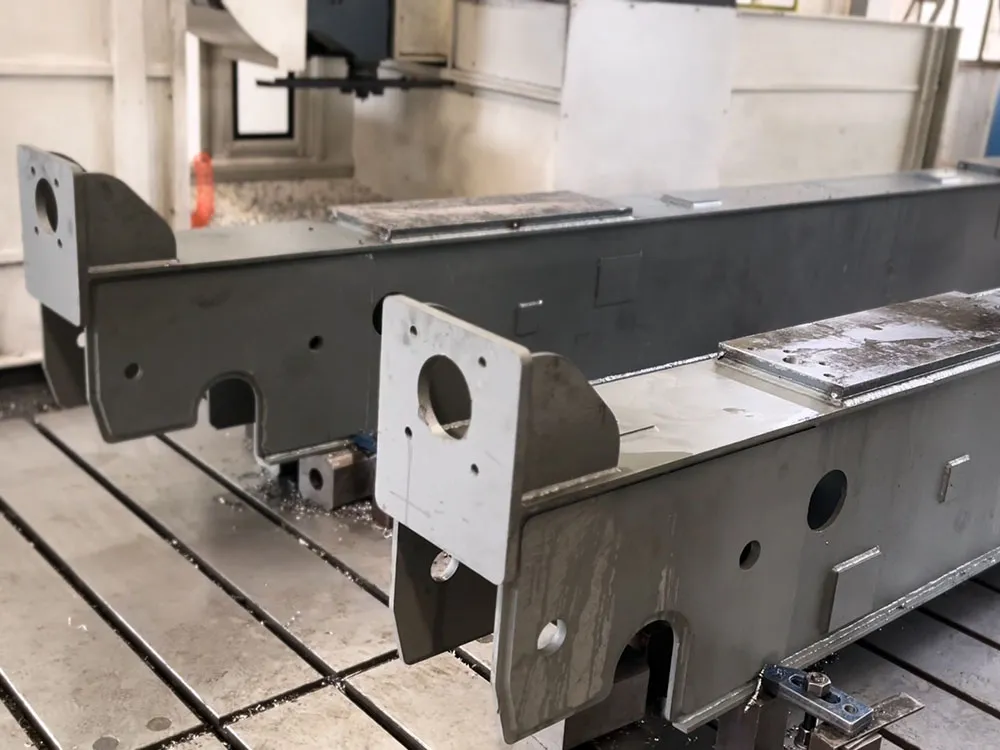

2. Integral boring and milling machining ensures high assembly precision.
3. Wheel sets are made of 42CrMo material and use American Timken bearings, ensuring smooth wheel rotation and requiring no routine maintenance.

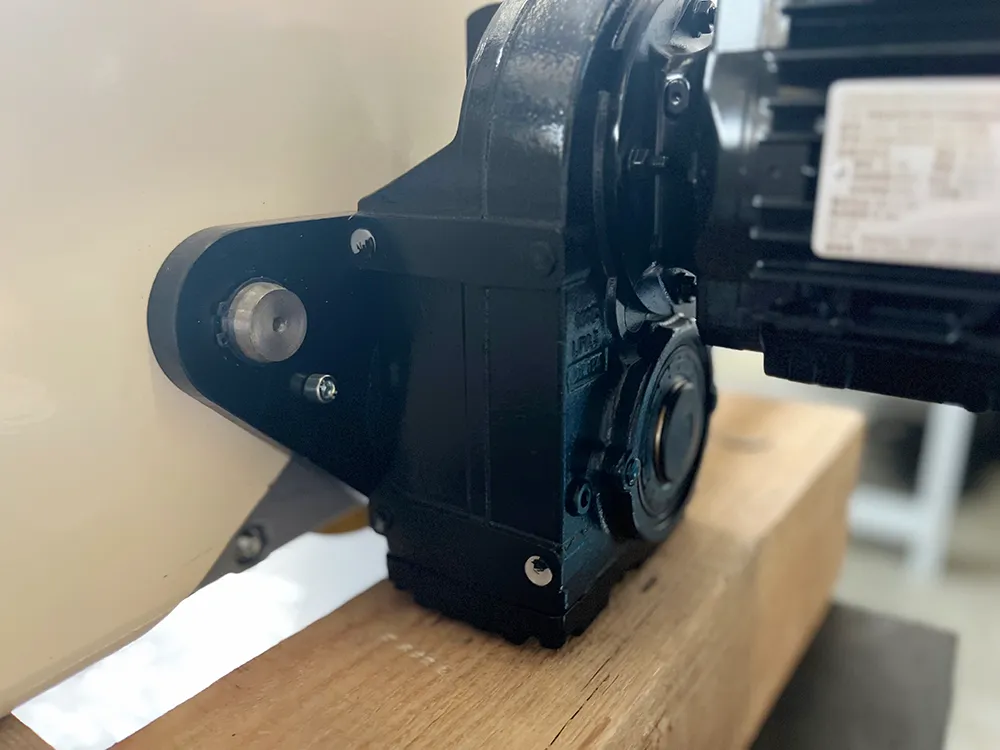

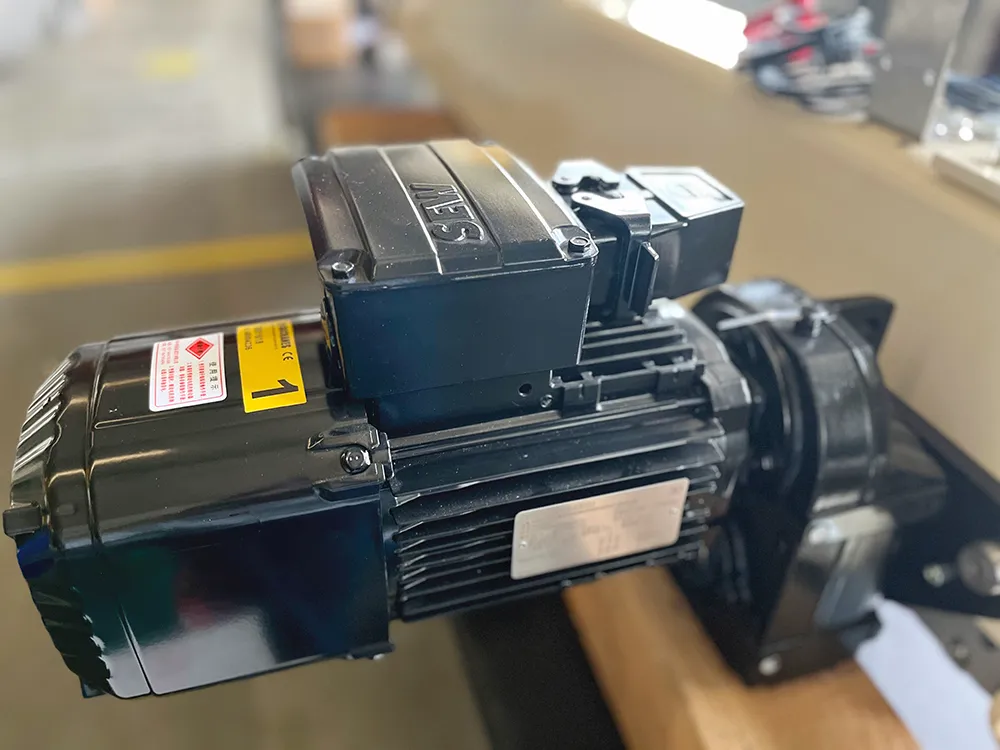

4. Standard configuration with German brand SEW drive.

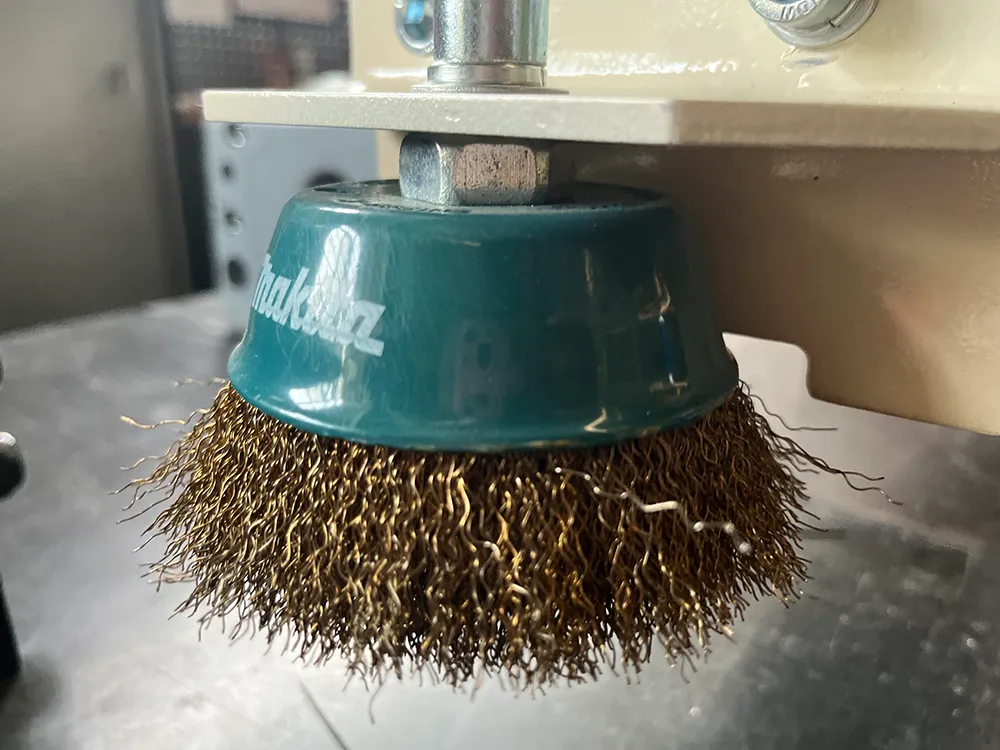

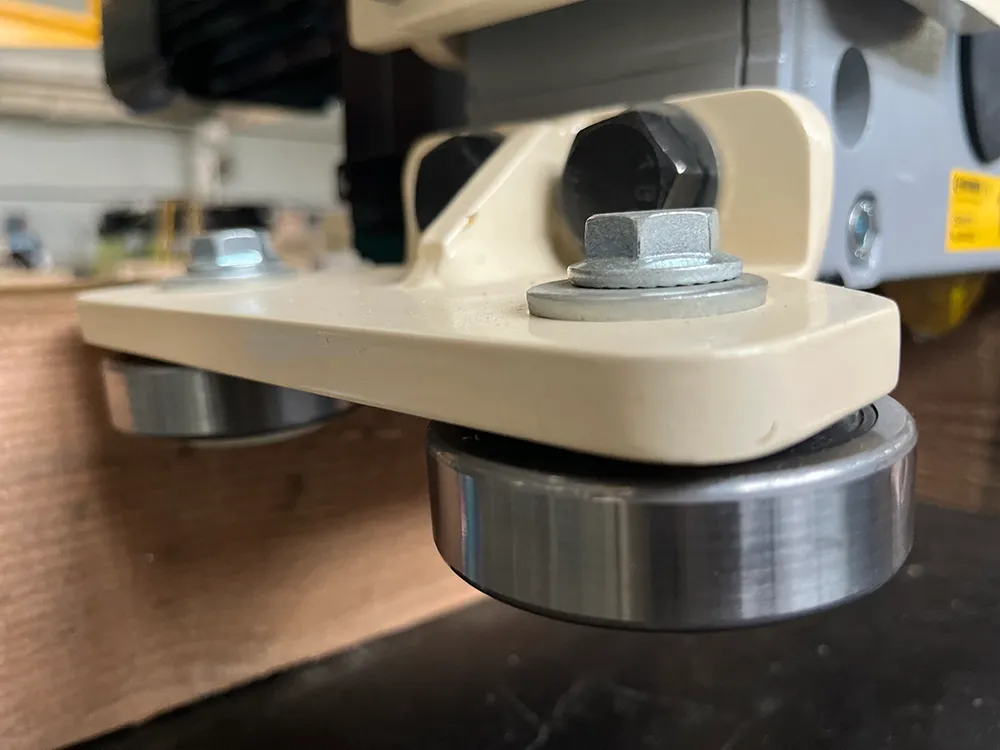

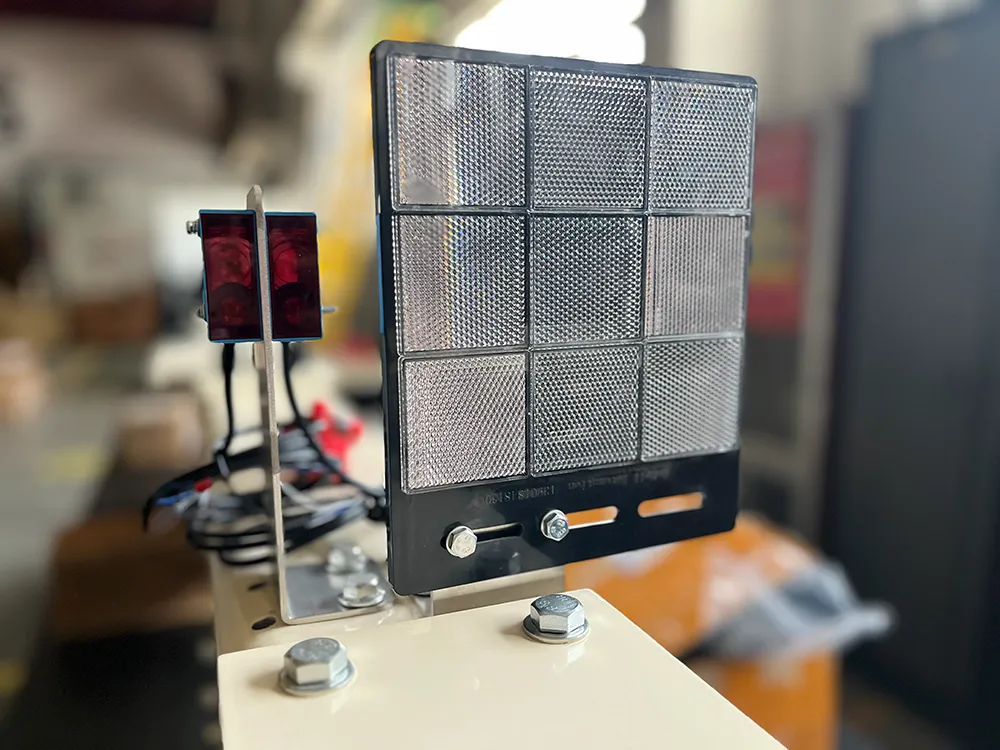

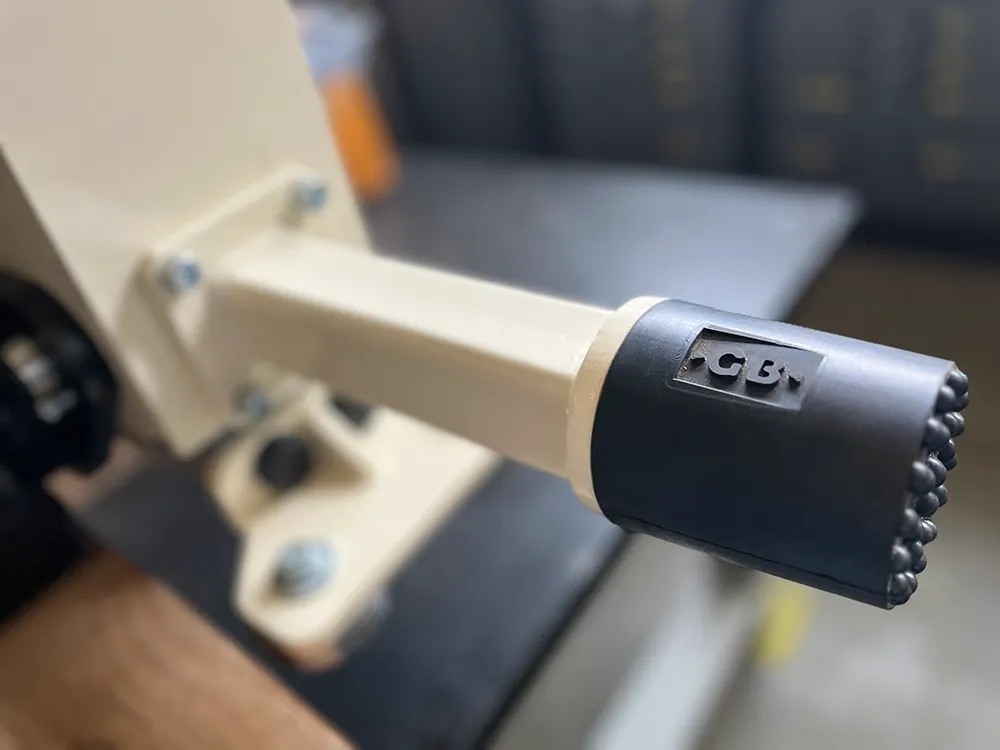

5. Optional components include horizontal guide wheels, rail brushes, and extension rods.
6. Jotun epoxy primer and polyurethane topcoat, with a standard thickness of no less than 240μm; meets C5 corrosion protection standards for special applications.
7. Explosion-proof versions of the LB series end beams are also available.
8. 3-year warranty, high-standard export packaging.

CBS Series (for Single Girder Overhead Crane)

Ton.	Span	Working Class	Model	Crane Drive
3	10.5	CLASS D	CBS 1218	FAZ27DRN71M4-18.84 0.37KW 380/50
	13.5	CLASS D	CBS 1222	FAZ27DRN71M4-18.84 0.37KW 380/50
	16.5	CLASS D	CBS 1227	FAZ27DRN71M4-18.84 0.37KW 380/50
	19.5	CLASS D	CBS 1231	FAZ27DRN71M4-18.84 0.37KW 380/50
	22.5	CLASS D	CBS 1231	FAZ27DRN80MK4-18.84 0.55KW 380/50
5	10.5	CLASS D	CBS 1218	FAZ27DRN71M4-18.84 0.37KW 380/50
	13.5	CLASS D	CBS 1622	FAZ27DRN80MK4-23.25 0.55KW 380/50
	16.5	CLASS D	CBS 1627	FAZ27DRN80MK4-23.25 0.55KW 380/50
	19.5	CLASS D	CBS 1631	FAZ27DRN80MK4-23.25 0.55KW 380/50
	22.5	CLASS D	CBS 1631	FAZ27DRN80MK4-23.25 0.55KW 380/50
	25.5	CLASS D	CBS 2038	FAZ37DRN80M4-28.09 0.75KW 380/50
	28.5	CLASS D	CBS 2041	FAZ37DRN80M4-28.09 0.75KW 380/50
10	10.5	CLASS D	CBS 1622	FAZ37DRN80M4-22.63 0.75KW 380/50
	13.5	CLASS D	CBS 2022	FAZ37DRN80M4-28.09 0.75KW 380/50
	16.5	CLASS D	CBS 2027	FAZ37DRN80M4-28.09 0.75KW 380/50
	19.5	CLASS D	CBS 2031	FAZ47DRN90S4-29.32 1.1KW 380/50
	22.5	CLASS D	CBS 2031	FAZ47DRN90S4-29.32 1.1KW 380/50
	25.5	CLASS D	CBS 2538	FAZ47DRN90S4-34.29 1.1KW 380/50
	28.5	CLASS D	CBS 2541	FAZ47DRN90S4-34.29 1.1KW 380/50
16	10.5	CLASS D	CBS 2022	FAZ47DRN90S4-29.32 1.1KW 380/50
	13.5	CLASS D	CBS 2522	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	CBS 2527	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	CBS 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	22.5	CLASS D	CBS 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	25.5	CLASS D	CBS 3238	FAZ67DRN100LS4-43.20 2.2KW 380/50
	28.5	CLASS D	CBS 3241	FAZ67DRN100LS4-43.20 2.2KW 380/50
20	10.5	CLASS D	CBS 2522	FAZ57DRN90L4-35.79 1.5KW 380/50
	13.5	CLASS D	CBS 3222	FAZ57DRN90L4-44.73 1.5KW 380/50
	16.5	CLASS D	CBS 3227	FAZ57DRN90L4-44.73 1.5KW 380/50
	19.5	CLASS D	CBS 3231	FAZ67DRN100LS4-43.20 2.2KW 380/50
	22.5	CLASS D	CBS 3231	FAZ67DRN100LS4-43.20 2.2KW 380/50
	25.5	CLASS D	CBS 3238	FAZ67DRN100LS4-43.20 2.2KW 380/50
	28.5	CLASS D	CBS 3241	FAZ67DRN100LS4-43.20 2.2KW 380/50

CBD Series (for Double Girder Overhead Crane)

Ton.	Span	Working Class	Model	Crane Drive
3	10.5	CLASS D	CBD 1628	FAZ27DRN71M4-20.15 0.37KW 380/50
	13.5	CLASS D	CBD 1628	FAZ27DRN71M4-20.15 0.37KW 380/50
	16.5	CLASS D	CBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	19.5	CLASS D	CBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	22.5	CLASS D	CBD 2031	FAZ37DRN80M4-28.09 0.75KW 380/50
	25.5	CLASS D	CBD 2038	FAZ37DRN80M4-28.09 0.75KW 380/50
	28.5	CLASS D	CBD 2041	FAZ37DRN80M4-28.09 0.75KW 380/50
5	10.5	CLASS D	CBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	13.5	CLASS D	CBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	16.5	CLASS D	CBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	19.5	CLASS D	CBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	22.5	CLASS D	CBD 2031	FAZ37DRN80M4-28.09 0.75KW 380/50
	25.5	CLASS D	CBD 2038	FAZ47DRN90S4-29.32 1.1KW 380/50
	28.5	CLASS D	CBD 2041	FAZ47DRN90S4-29.32 1.1KW 380/50
	31.5	CLASS D	CBD 2545	FAZ47DRN90S4-34.29 1.1KW 380/50
10	10.5	CLASS D	CBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	13.5	CLASS D	CBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	16.5	CLASS D	CBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	19.5	CLASS D	CBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	22.5	CLASS D	CBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	25.5	CLASS D	CBD 2538	FAZ57DRN90L4-35.79 1.5KW 380/50
	28.5	CLASS D	CBD 2541	FAZ57DRN90L4-35.79 1.5KW 380/50
	31.5	CLASS D	CBG 2018	FAZ47DRN90L4-28.88 1.5KW 380/50
16	10.5	CLASS D	CBD 2528	FAZ47DRN90S4-34.29 1.1KW 380/50
	13.5	CLASS D	CBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	CBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	CBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	22.5	CLASS D	CBD 2534	FAZ67DRN100LS4-34.01 2.2KW 380/50
	25.5	CLASS D	CBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	28.5	CLASS D	CBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	31.5	CLASS D	CBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	34.5	CLASS D	CBG 2020	FAZ57DRN100LS4-30.15 2.2KW 380/50
20	10.5	CLASS D	CBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	13.5	CLASS D	CBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	CBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	CBD 2531	FAZ67DRN100LS4-34.01 2.2KW 380/50
	22.5	CLASS D	CBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	25.5	CLASS D	CBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	28.5	CLASS D	CBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	31.5	CLASS D	CBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	34.5	CLASS D	CBG 2020	FAZ67DRN100L4-27.41 3.0KW 380/50

CBG Series (for Double Girder Overhead Crane)

Tons.	Span	Working Class	Model	Crane Drive
25	10.5	CLASS D	CBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	13.5	CLASS D	CBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	16.5	CLASS D	CBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	19.5	CLASS D	CBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	22.5	CLASS D	CBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	25.5	CLASS D	CBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	28.5	CLASS D	CBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	31.5	CLASS D	CBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	34.5	CLASS D	CBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
32	10.5	CLASS D	CBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	13.5	CLASS D	CBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	16.5	CLASS D	CBG 2014	FAZ67DRN100L4-27.41 3.0KW 380/50
	19.5	CLASS D	CBG 2014	FAZ67DRN100L4-27.41 3.0KW 380/50
	22.5	CLASS D	CBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	25.5	CLASS D	CBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	28.5	CLASS D	CBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	31.5	CLASS D	CBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
	34.5	CLASS D	CBG 2520	FAZ77DRN112M4-33.74 4.0KW 380/50
40	10.5	CLASS D	CBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	13.5	CLASS D	CBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	16.5	CLASS D	CBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	19.5	CLASS D	CBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	22.5	CLASS D	CBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
	25.5	CLASS D	CBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	28.5	CLASS D	CBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	31.5	CLASS D	CBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	34.5	CLASS D	CBG 3221	FAZ77DRN112M4-43.58 4.0KW 380/50
50	10.5	CLASS D	CBG 3214	FAZ77DRN100L4-43.58 3.0KW 380/50
	13.5	CLASS D	CBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	16.5	CLASS D	CBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	19.5	CLASS D	CBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	22.5	CLASS D	CBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	25.5	CLASS D	CBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	28.5	CLASS D	CBG 3218	FAZ87DRN132S4-45.28 5.5KW 380/50
	31.5	CLASS D	CBG 3221	FAZ87DRN132S4-45.28 5.5KW 380/50
	34.5	CLASS D	CBG 3221	FAZ87DRN132S4-45.28 5.5KW 380/50

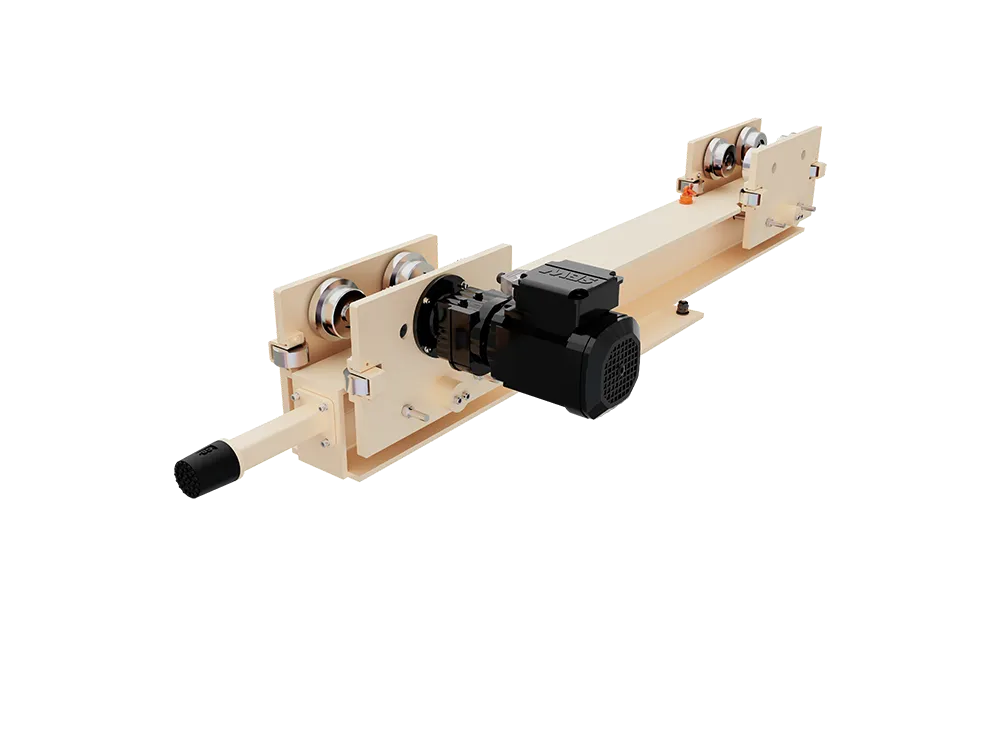

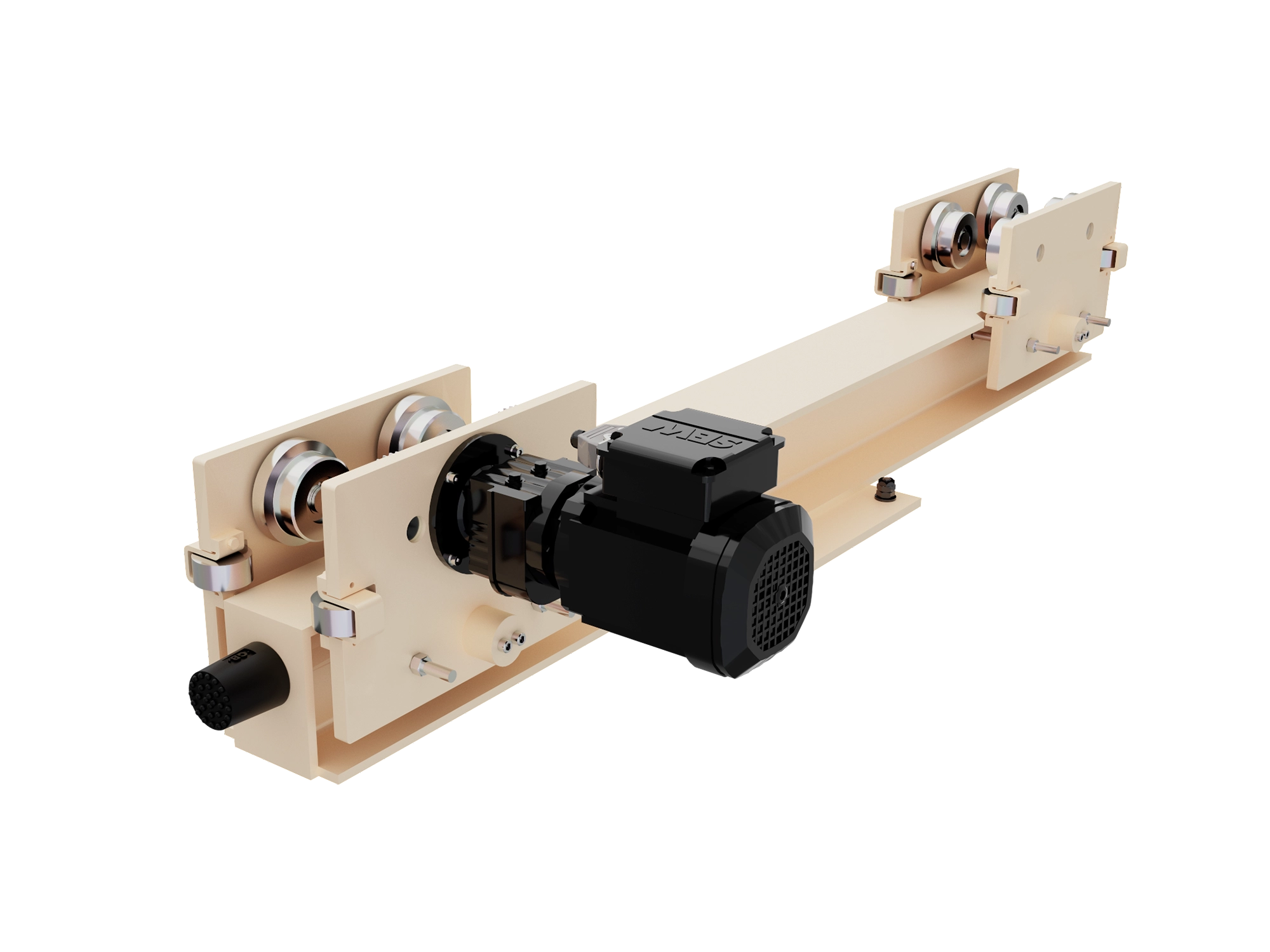

CBU Series ( for Suspension Crane)

Model	Capacity	Span ( m )	Base	Wheel Dia.	Power (KW)	Buffer Model	Suitable for H Beam	Speed	Drive Model
CBU0818	1	8	1800	φ80	0.18	φ80	150 150 7 *10	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU0822	1	12	2200	φ80	0.18	φ80	150 150 7 *10	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU0827	1	16	2700	φ80	0.18	φ80	200 200 8 *12	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU0818	2	8	1800	φ80	0.18	φ80	150 150 7 *10	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU0822	2	12	2200	φ80	0.18	φ80	200 200 8 *12	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU0827	2	16	2700	φ80	0.18	φ80	200 200 8 *12	20	RF07DRN63M4-6.83 0.18KW 380/50
CBU1018	3	8	1800	φ100	0.25	φ80	200 200 8 *12	20	RF07DRN71MS4-9.01 0.25KW 380/50
CBU1022	3	12	2200	φ100	0.25	φ80	200 200 8 *12	20	RF07DRN71MS4-9.01 0.25KW 380/50
CBU1027	3	16	2700	φ100	0.25	φ80	200 200 8 *12	20	RF07DRN71MS4-9.01 0.25KW 380/50
CBU1018	5	8	1800	φ100	0.37	φ80	200 200 8 *12	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1022	5	12	2200	φ100	0.37	φ80	200 200 8 *12	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1027	5	16	2700	φ100	0.37	φ80	250 250 9 *14	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1218	6.3	8	1800	φ125	0.37	φ80	250 250 9 *14	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1222	6.3	12	2200	φ125	0.37	φ80	250 250 9 *14	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1227	6.3	16	2700	φ125	0.37	φ80	250 250 9 *14	20	RF07DRN71M4-9.01 0.37KW 380/50
CBU1222	8	8	2200	φ125	0.55	φ80	250 250 9 *14	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1222	8	12	2200	φ125	0.55	φ80	250 250 9 *14	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1227	8	16	2700	φ125	0.55	φ80	250 250 9 *14	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1222	10	8	2200	φ125	0.55	φ80	250 250 9 *14	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1222	10	12	2200	φ125	0.55	φ80	250 250 9 *14	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1227	10	16	2700	φ125	0.55	φ80	300 300 10 *15	20	RF17DRN80MK4-10.15 0.55KW 380/50
CBU1622	12.5	8	2200	φ160	0.75	φ80	300 300 10 *15	20	RF17DRN80M4-12.98 0.75KW 380/50
CBU1622	12.5	12	2200	φ160	0.75	φ80	300 300 10 *15	20	RF17DRN80M4-12.98 0.75KW 380/50
CBU1627	12.5	16	2700	φ160	0.75	φ80	300 300 10 *15	20	RF17DRN80M4-12.98 0.75KW 380/50
CBU1622	16	8	2200	φ160	0.75	φ80	300 300 10 *15	20	RF17DRN80M4-12.98 0.75KW 380/50
CBU1622	16	12	2200	φ160	0.75	φ80	300 300 10 *15	20	RF17DRN80M4-12.98 0.75KW 380/50
CBU1627	16	16	2700	φ160	1.1	φ80	350 350 12 *19	20	RF27DRN90S4-95 1.1KW 380/50
CBU1622	20	8	2200	φ160	1.1	φ80	300 300 10 *15	20	RF27DRN90S4-95 1.1KW 380/50
CBU1622	20	12	2200	φ160	1.1	φ80	300 300 10 *15	20	RF27DRN90S4-95 1.1KW 380/50
CBU1627	20	16	2700	φ160	1.1	φ80	350 350 12 *19	20	RF27DRN90S4-95 1.1KW 380/50
