HOME /STANDARD BUSINESS /Crane Kits / LB End Carriage

Warranty period:
3 Years

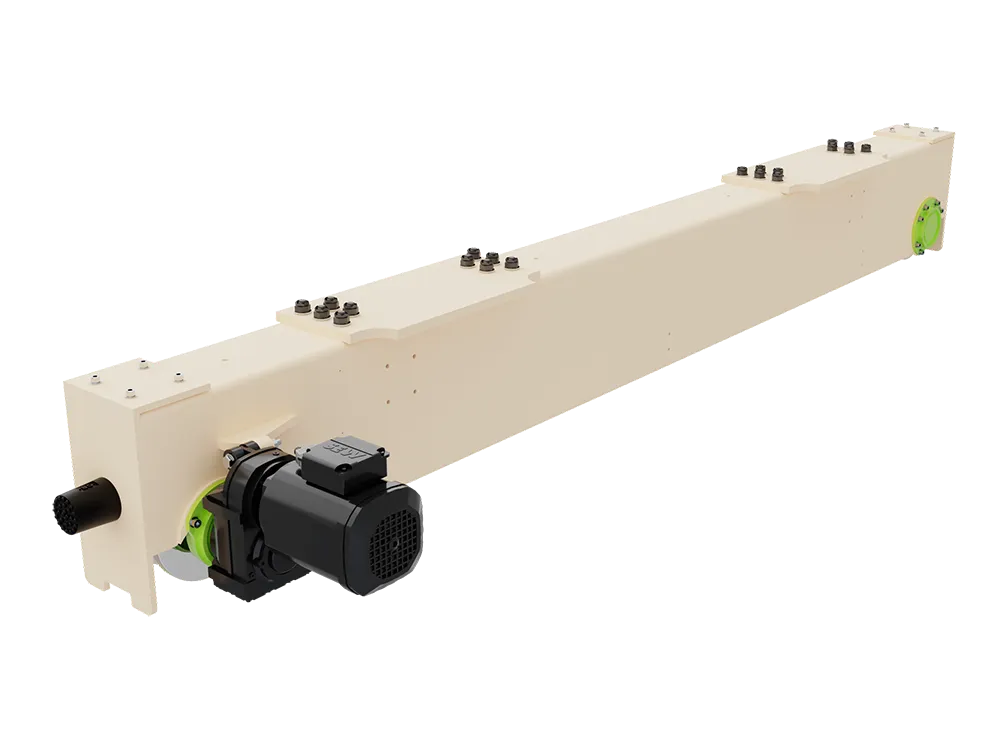

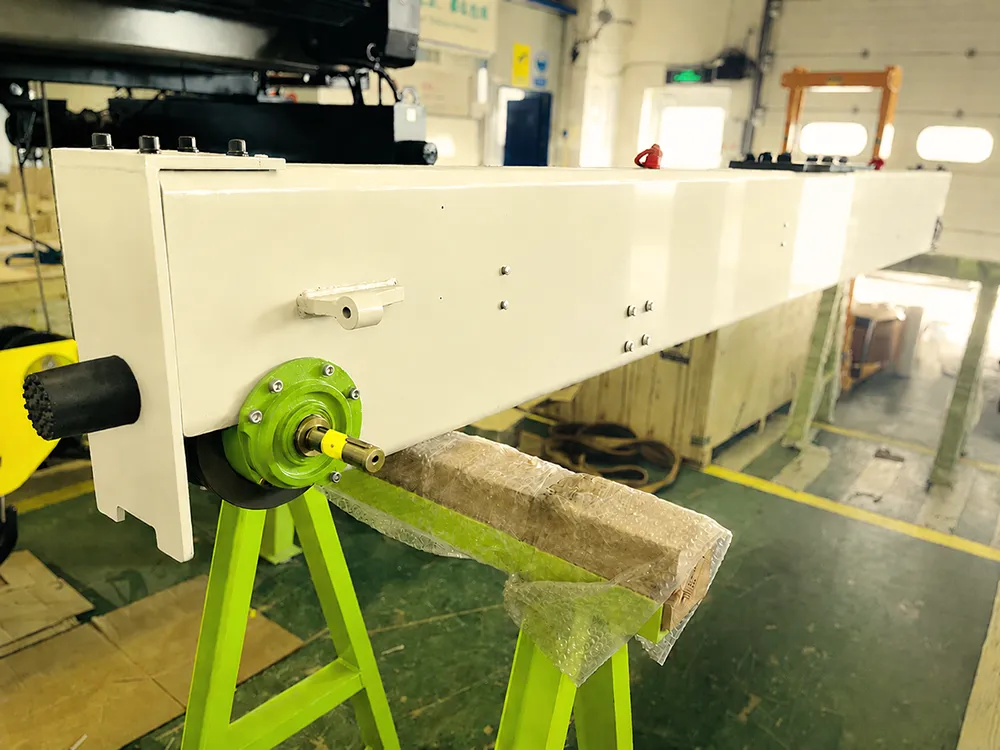

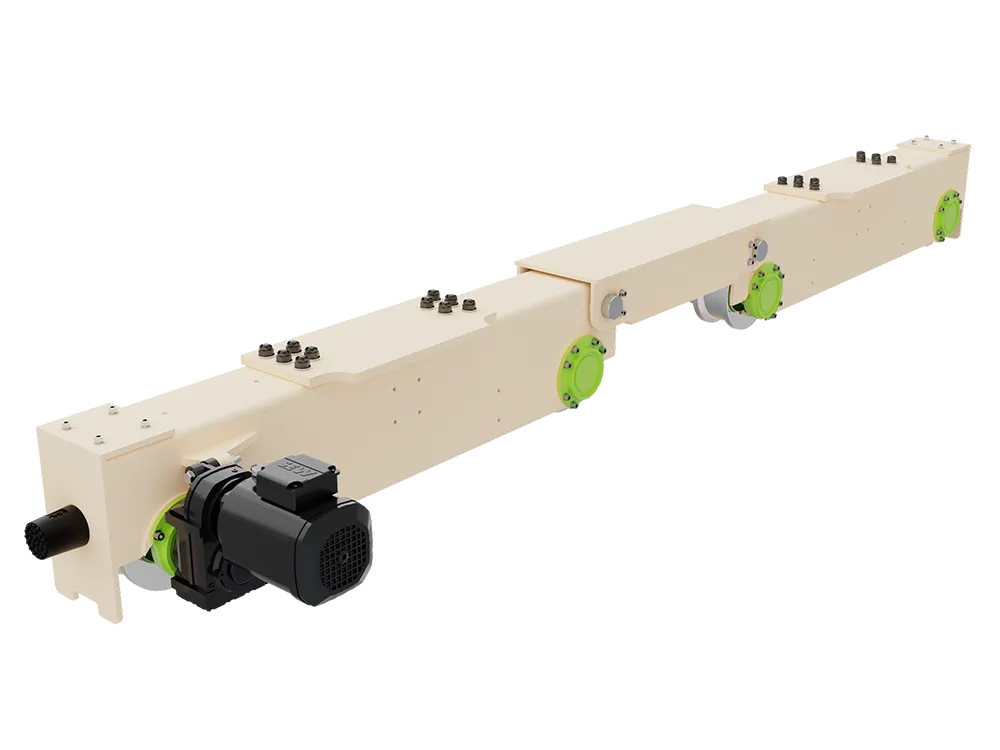

The end carriages are primed in the factory and offer versatile connection options; they are a reliable component both for new installations and for upgrades.They are available for overhead cranes.

CONTACT OUR TEAM TODAY

inquiry@clescrane.com

Consulting Online

+86 13523501202

IMAGES & VIDEOS

INTRODUCTION

Overview

1. LB series end carriage feature a fully standardized design, offering significant cost-effectiveness.
2. Integral boring and milling machining ensures high assembly precision.

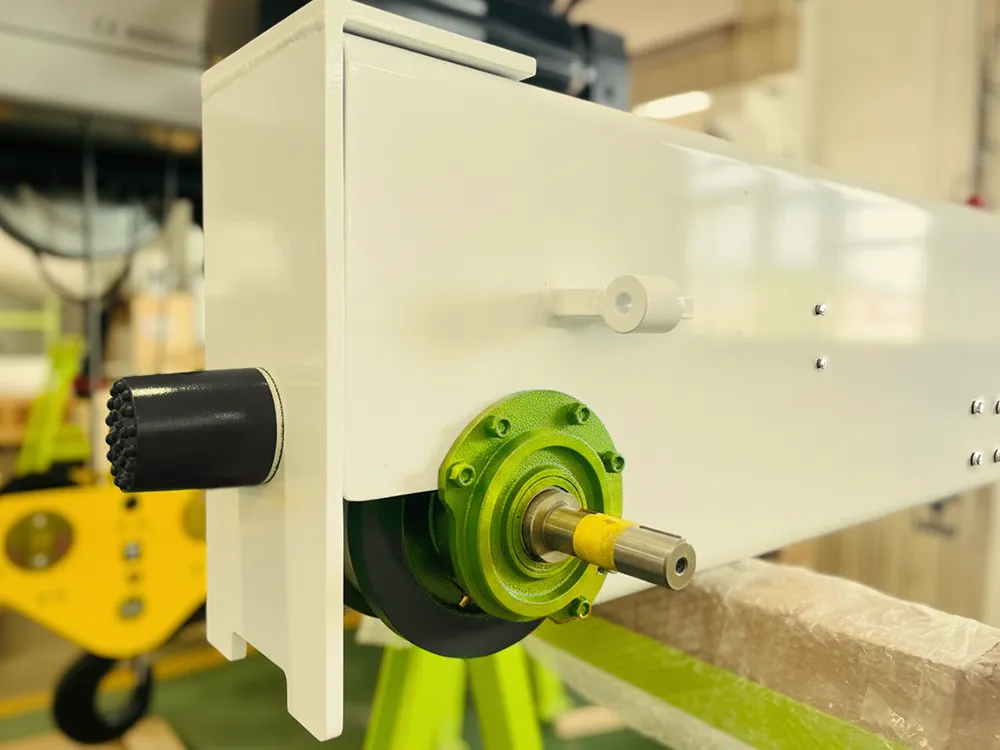

3. Wheel blocks are made of 42CrMo material, using American Timken bearings for smooth wheel rotation. Oiling holes on both sides of the wheels facilitate regular bearing maintenance.
4. Standard configuration with German brand SEW drive.
5. Optional components include horizontal guide wheels, rail brushes, and extension rods.
6. Jotun epoxy primer and polyurethane topcoat, with a standard thickness of no less than 240μm; meets C5 corrosion protection standards for special applications.
7. Explosion-proof versions of the LB series end beams are also available.
8. 3-year warranty, high-standard export packaging.

LBS Series (for Single Girder Overhead Crane)

Ton.	Span	Working Class	Model	Crane Drive
3	10.5	CLASS D	LBS 1218	FAZ27DRN71M4-18.84 0.37KW 380/50
	13.5	CLASS D	LBS 1222	FAZ27DRN71M4-18.84 0.37KW 380/50
	16.5	CLASS D	LBS 1227	FAZ27DRN71M4-18.84 0.37KW 380/50
	19.5	CLASS D	LBS 1231	FAZ27DRN71M4-18.84 0.37KW 380/50
	22.5	CLASS D	LBS 1231	FAZ27DRN80MK4-18.84 0.55KW 380/50
5	10.5	CLASS D	LBS 1218	FAZ27DRN71M4-18.84 0.37KW 380/50
	13.5	CLASS D	LBS 1622	FAZ27DRN80MK4-23.25 0.55KW 380/50
	16.5	CLASS D	LBS 1627	FAZ27DRN80MK4-23.25 0.55KW 380/50
	19.5	CLASS D	LBS 1631	FAZ27DRN80MK4-23.25 0.55KW 380/50
	22.5	CLASS D	LBS 1631	FAZ27DRN80MK4-23.25 0.55KW 380/50
	25.5	CLASS D	LBS 2038	FAZ37DRN80M4-28.09 0.75KW 380/50
	28.5	CLASS D	LBS 2041	FAZ37DRN80M4-28.09 0.75KW 380/50
10	10.5	CLASS D	LBS 1622	FAZ37DRN80M4-22.63 0.75KW 380/50
	13.5	CLASS D	LBS 2022	FAZ37DRN80M4-28.09 0.75KW 380/50
	16.5	CLASS D	LBS 2027	FAZ37DRN80M4-28.09 0.75KW 380/50
	19.5	CLASS D	LBS 2031	FAZ47DRN90S4-29.32 1.1KW 380/50
	22.5	CLASS D	LBS 2031	FAZ47DRN90S4-29.32 1.1KW 380/50
	25.5	CLASS D	LBS 2538	FAZ47DRN90S4-34.29 1.1KW 380/50
	28.5	CLASS D	LBS 2541	FAZ47DRN90S4-34.29 1.1KW 380/50
16	10.5	CLASS D	LBS 2022	FAZ47DRN90S4-29.32 1.1KW 380/50
	13.5	CLASS D	LBS 2522	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	LBS 2527	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	LBS 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	22.5	CLASS D	LBS 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	25.5	CLASS D	LBS 3238	FAZ67DRN100LS4-43.20 2.2KW 380/50
	28.5	CLASS D	LBS 3241	FAZ67DRN100LS4-43.20 2.2KW 380/50
20	10.5	CLASS D	LBS 2522	FAZ57DRN90L4-35.79 1.5KW 380/50
	13.5	CLASS D	LBS 3222	FAZ57DRN90L4-44.73 1.5KW 380/50
	16.5	CLASS D	LBS 3227	FAZ57DRN90L4-44.73 1.5KW 380/50
	19.5	CLASS D	LBS 3231	FAZ67DRN100LS4-43.20 2.2KW 380/50
	22.5	CLASS D	LBS 3231	FAZ67DRN100LS4-43.20 2.2KW 380/50
	25.5	CLASS D	LBS 3238	FAZ67DRN100LS4-43.20 2.2KW 380/50
	28.5	CLASS D	LBS 3241	FAZ67DRN100LS4-43.20 2.2KW 380/50

LBD Series (for Double Girder Overhead Crane)

Ton.	Span	Working Class	Model	Crane Drive
3	10.5	CLASS D	LBD 1628	FAZ27DRN71M4-20.15 0.37KW 380/50
	13.5	CLASS D	LBD 1628	FAZ27DRN71M4-20.15 0.37KW 380/50
	16.5	CLASS D	LBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	19.5	CLASS D	LBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	22.5	CLASS D	LBD 2031	FAZ37DRN80M4-28.09 0.75KW 380/50
	25.5	CLASS D	LBD 2038	FAZ37DRN80M4-28.09 0.75KW 380/50
	28.5	CLASS D	LBD 2041	FAZ37DRN80M4-28.09 0.75KW 380/50
5	10.5	CLASS D	LBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	13.5	CLASS D	LBD 1628	FAZ27DRN80MK4-23.25 0.55KW 380/50
	16.5	CLASS D	LBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	19.5	CLASS D	LBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	22.5	CLASS D	LBD 2031	FAZ37DRN80M4-28.09 0.75KW 380/50
	25.5	CLASS D	LBD 2038	FAZ47DRN90S4-29.32 1.1KW 380/50
	28.5	CLASS D	LBD 2041	FAZ47DRN90S4-29.32 1.1KW 380/50
	31.5	CLASS D	LBD 2545	FAZ47DRN90S4-34.29 1.1KW 380/50
10	10.5	CLASS D	LBD 2028	FAZ37DRN80M4-28.09 0.75KW 380/50
	13.5	CLASS D	LBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	16.5	CLASS D	LBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	19.5	CLASS D	LBD 2028	FAZ47DRN90S4-29.32 1.1KW 380/50
	22.5	CLASS D	LBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	25.5	CLASS D	LBD 2538	FAZ57DRN90L4-35.79 1.5KW 380/50
	28.5	CLASS D	LBD 2541	FAZ57DRN90L4-35.79 1.5KW 380/50
	31.5	CLASS D	LBG 2018	FAZ47DRN90L4-28.88 1.5KW 380/50
16	10.5	CLASS D	LBD 2528	FAZ47DRN90S4-34.29 1.1KW 380/50
	13.5	CLASS D	LBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	LBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	LBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	22.5	CLASS D	LBD 2534	FAZ67DRN100LS4-34.01 2.2KW 380/50
	25.5	CLASS D	LBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	28.5	CLASS D	LBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	31.5	CLASS D	LBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	34.5	CLASS D	LBG 2020	FAZ57DRN100LS4-30.15 2.2KW 380/50
20	10.5	CLASS D	LBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	13.5	CLASS D	LBD 2528	FAZ57DRN90L4-35.79 1.5KW 380/50
	16.5	CLASS D	LBD 2531	FAZ57DRN90L4-35.79 1.5KW 380/50
	19.5	CLASS D	LBD 2531	FAZ67DRN100LS4-34.01 2.2KW 380/50
	22.5	CLASS D	LBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	25.5	CLASS D	LBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	28.5	CLASS D	LBG 2018	FAZ57DRN100LS4-30.15 2.2KW 380/50
	31.5	CLASS D	LBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	34.5	CLASS D	LBG 2020	FAZ67DRN100L4-27.41 3.0KW 380/50

LBG Series (for Double Girder Overhead Crane)

Tons.	Span	Working Class	Model	Crane Drive
25	10.5	CLASS D	LBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	13.5	CLASS D	LBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	16.5	CLASS D	LBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	19.5	CLASS D	LBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	22.5	CLASS D	LBG 2014	FAZ57DRN100LS4-30.15 2.2KW 380/50
	25.5	CLASS D	LBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	28.5	CLASS D	LBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	31.5	CLASS D	LBG 2018	FAZ67DRN100L4-27.41 3.0KW 380/50
	34.5	CLASS D	LBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
32	10.5	CLASS D	LBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	13.5	CLASS D	LBG 2012	FAZ57DRN100LS4-30.15 2.2KW 380/50
	16.5	CLASS D	LBG 2014	FAZ67DRN100L4-27.41 3.0KW 380/50
	19.5	CLASS D	LBG 2014	FAZ67DRN100L4-27.41 3.0KW 380/50
	22.5	CLASS D	LBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	25.5	CLASS D	LBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	28.5	CLASS D	LBG 2518	FAZ77DRN100L4-36.58 3.0KW 380/50
	31.5	CLASS D	LBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
	34.5	CLASS D	LBG 2520	FAZ77DRN112M4-33.74 4.0KW 380/50
40	10.5	CLASS D	LBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	13.5	CLASS D	LBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	16.5	CLASS D	LBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	19.5	CLASS D	LBG 2514	FAZ77DRN100L4-36.58 3.0KW 380/50
	22.5	CLASS D	LBG 2518	FAZ77DRN112M4-33.74 4.0KW 380/50
	25.5	CLASS D	LBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	28.5	CLASS D	LBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	31.5	CLASS D	LBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	34.5	CLASS D	LBG 3221	FAZ77DRN112M4-43.58 4.0KW 380/50
50	10.5	CLASS D	LBG 3214	FAZ77DRN100L4-43.58 3.0KW 380/50
	13.5	CLASS D	LBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	16.5	CLASS D	LBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	19.5	CLASS D	LBG 3216	FAZ77DRN112M4-43.58 4.0KW 380/50
	22.5	CLASS D	LBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	25.5	CLASS D	LBG 3218	FAZ77DRN112M4-43.58 4.0KW 380/50
	28.5	CLASS D	LBG 3218	FAZ87DRN132S4-45.28 5.5KW 380/50
	31.5	CLASS D	LBG 3221	FAZ87DRN132S4-45.28 5.5KW 380/50
	34.5	CLASS D	LBG 3221	FAZ87DRN132S4-45.28 5.5KW 380/50
