QUESTIONS LISTS

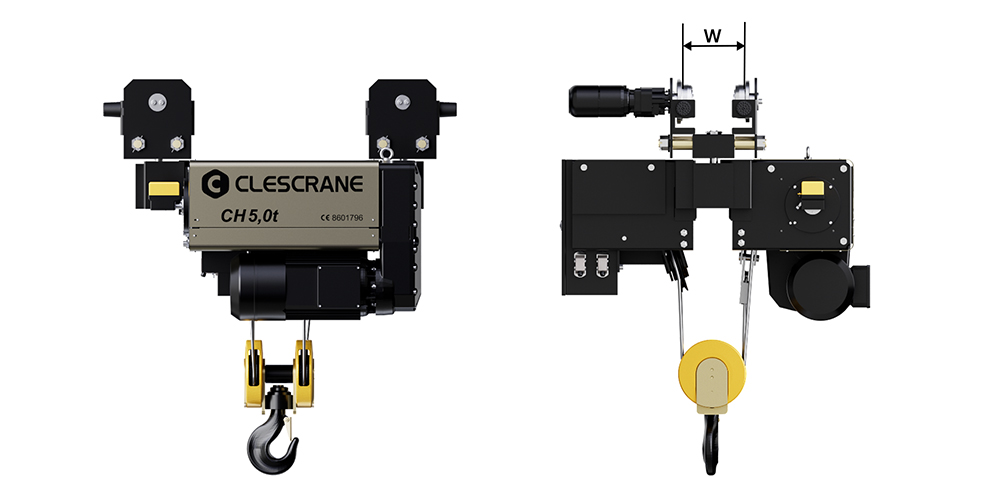

FOR CH-R WIRE ROPE ELECTRIC HOIST
(FOR MONORAIL)
Dear customers:
CLESCRANE design reference standards are all from CMAA 74-2020
Your information:
Capacity:(Max. Load 50t)
*
Lift height: (height>18m can be customized)
*
Key question 5:
How many times are expected to be lifted during the busiest hour?
*
CLESCRANE Design Crane Classifications:
CLASS C (MODERATE SERVICE)
This service covers cranes which may be used in machine shops or paper mill machine rooms, etc., where service requirements are moderate. In this type
of service the crane will handle loads which average 50 percent of the rated capacity with 5 to 10 lifts per hour, averaging 15 feet, not over 50 percent of the lifts at
rated capacity.
CLASS D (HEAVY SERVICE)
This service covers cranes which may be used in heavy machine shops, foundries, fabricating plants, steel warehouses, container yards, lumber mills,
etc., and standard duty bucket and magnet operations where heavy duty production is required. In this type of service, loads approaching 50 percent of the rated capacity
will be handled constantly during the working period. High speeds are desirable for this type of service with 10 to 20 lifts per hour averaging 15 feet, not over 65 percent
of the lifts at rated capacity.
Functions of hoist:
CLESCRANE Standards:
1. Pendant & cables
2. Monitoring unit
3. End stop for trolley
4. Control transformer
5. Lifting motor and travel motor brand is GBCRANES
6. End stop for long travel
Weighing hook blocks & Display:
When the lifting capacity ≤ 20t, it's recommended to use the weighing hook blocks;
When the lifting capacity>20t, it's recommended to use the display
Pls understand that additional functions may increase the cost.
