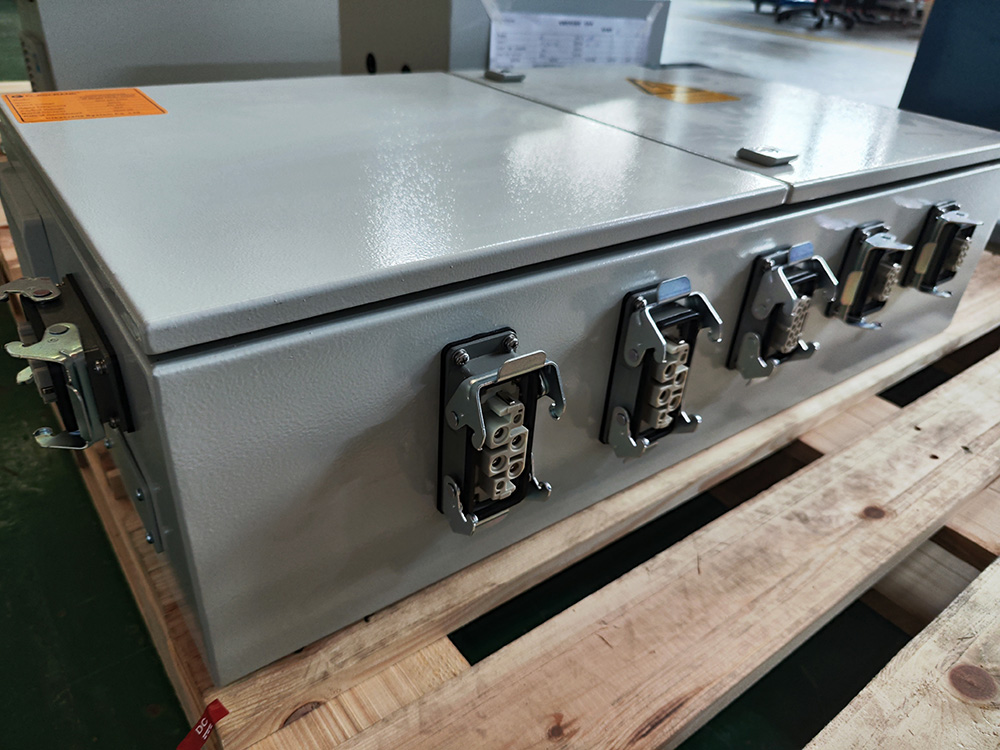

Basic Electric Control
Our crane control panels meets the following standards:
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards
Overview
Our crane control panels meets the following standards:
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards
Basic electronic control standard configuration of Clescrane:
Single Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
Double Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards

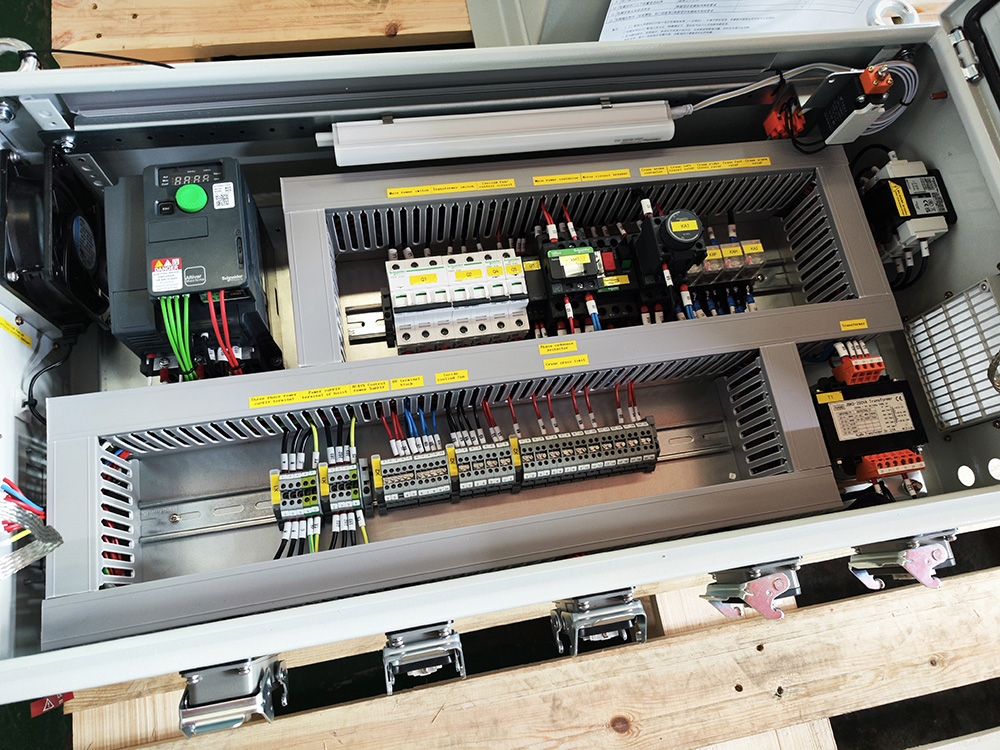

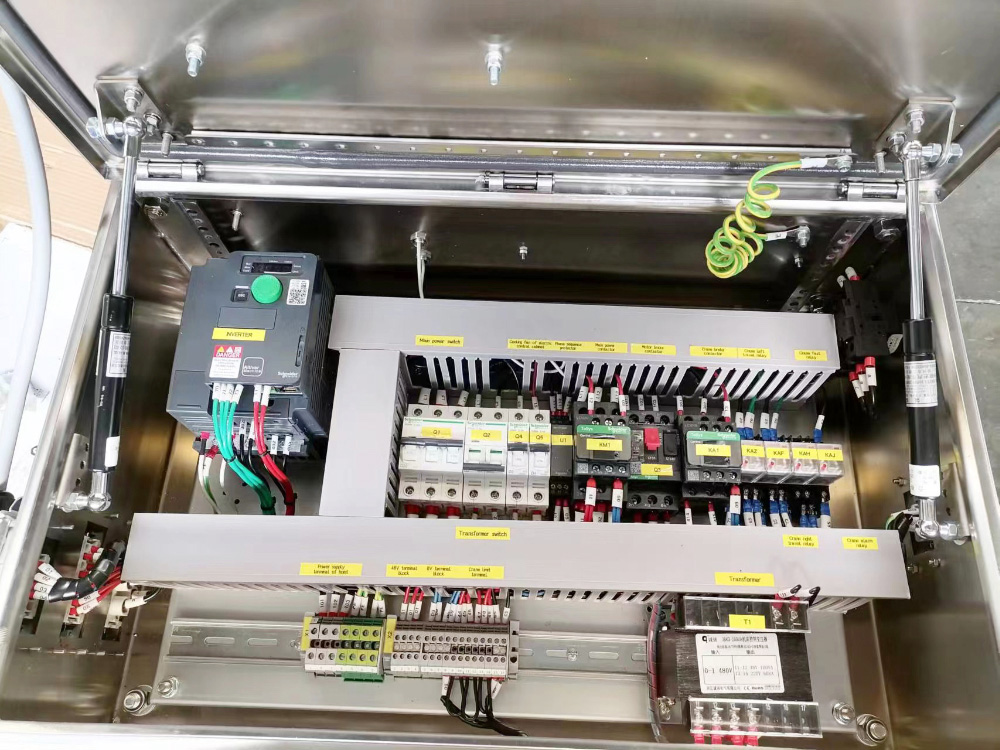

Basic electronic control standard configuration of Clescrane:
| Item | Brand |
| Electric Cabinet | Me |
| Lighting Lamp+Door Limit | Me |
| Electric Cabinet Cable | Lapp |
| Frequency Converter | Schneider/Abb |
| Electrical Components | Schneider |
| Intermediate Relay | Weidmuller |
| Monorail | Weidmuller |
| Transformer | Clescrane |
| Terminal | Weidmuller/Wago |
| Fan | Ebm |
| Braking Resistance | Clescrane |
| Indicator Light | Eaton Moeller |
| PLC | Siemens |
| Touch Screen | Siemens |
| Heavy Load Connector | Wevel |
| Isolating Switch | Schneider |
| Timer/Counter | Autonics |

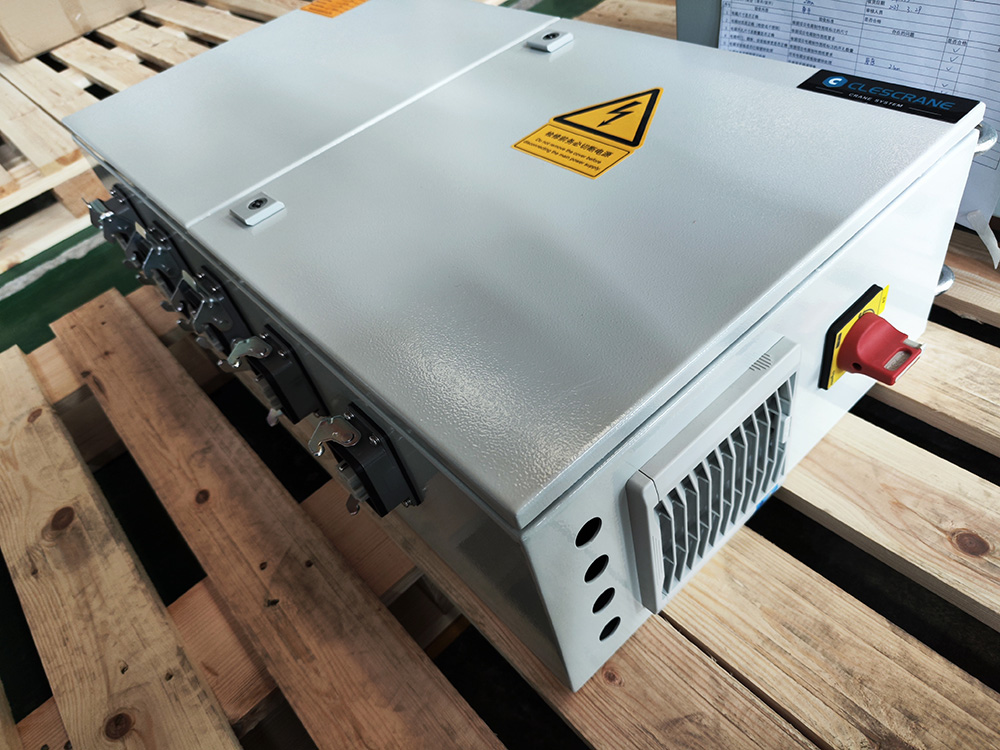

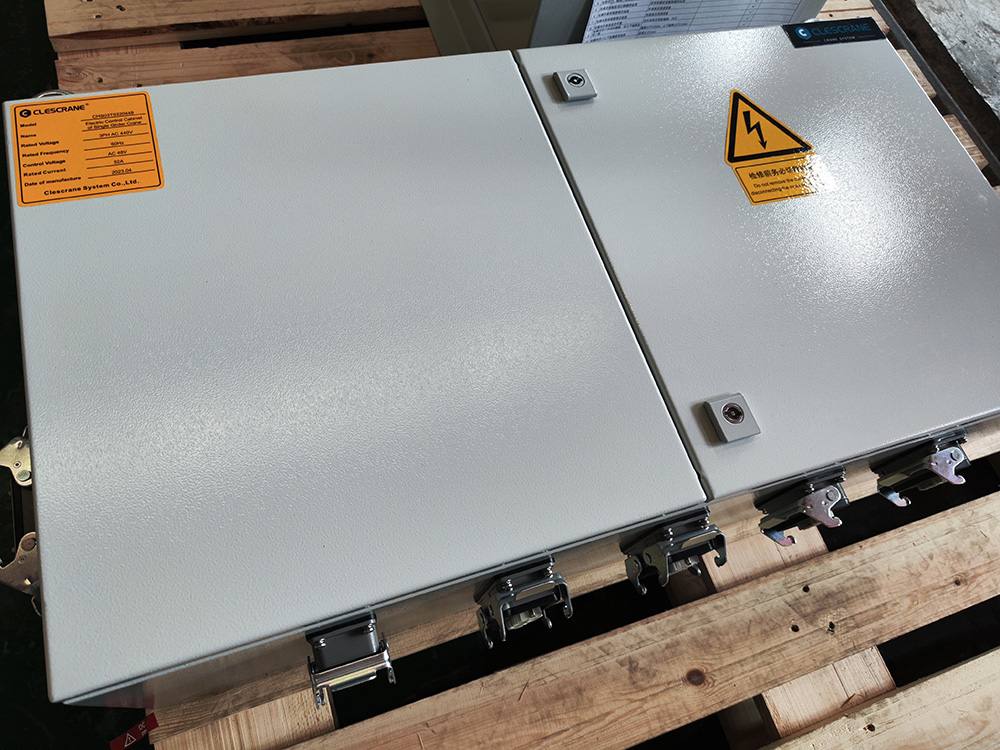

Single Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
| Ton. | Model | Rated voltage | Rated control voltage | Rated current | Span | Crane rated power | External dimensions | Installation method |
| 3T | GECS03T0160448 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 16A | 2x0.37KW | 900*550*250 | Hanging type | |
| 5T | GECS05T0250448 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 25A | ≤20.5M | 2x0.55KW | 900*550*250 | Hanging type |
| GECS05T0250948 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 25A | ≥23.5M | 2x0.75KW | 900*550*250 | Hanging type | |
| 10T | GECS10T0400948 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 40A | ≤11.5M | 2x0.75KW | 900*550*250 | Hanging type |
| GECS10T0501348 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 50A | ≥18.5M | 2x1.1KW | 900*550*250 | Hanging type | |
| 20T | GECS20T0631348 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 50A | ≤11.5M | 2x1.5KW | 1050*650*250 | Hanging type |
| GECS20T0631648 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 63A | ≥18.5M | 2x2.2KW | 1050*650*250 | Hanging type |

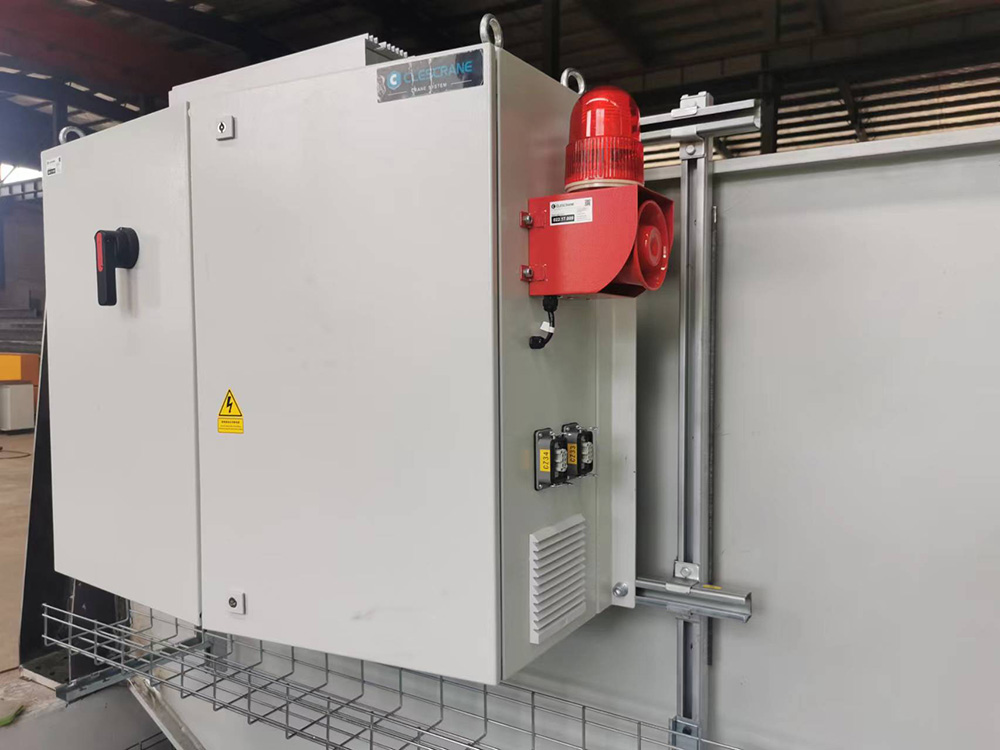

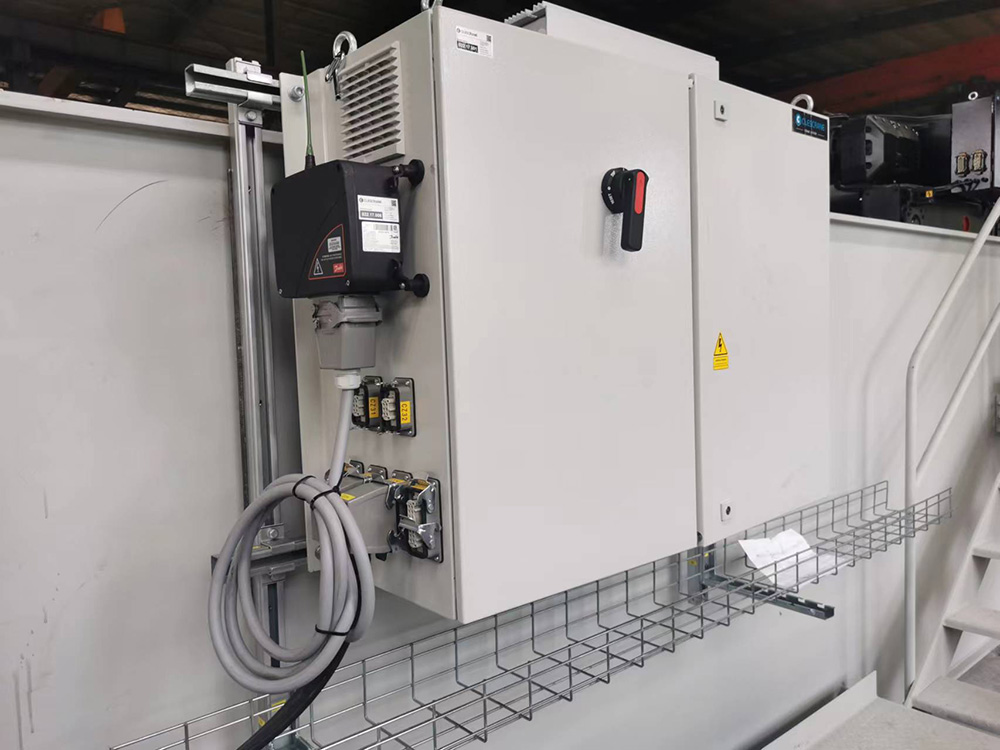

Double Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
| Ton. | Model | Rated voltage | Rated control voltage | Rated current | Span | Crane rated power | External dimensions | Installation method |
| 3T | GECD03T0160448 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 16A | 2x0.55KW | 900*550*250 | Wall mounted | |
| 5T | GECD05T0250448 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 25A | ≤21.5M | 2x0.75KW | 900*550*250 | Wall mounted |
| GECD05T0250948 | SPH AC380-4607 50/60HZ | AC48V 50/60Hz | 25A | ≥22.5M | 2x1.1KW | 900*550*250 | Wall mounted | |
| 10T | GECD10T0400948 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 40A | ≤21.5M | 2x1.1KW | 900*550*250 | Wall mounted |
| GECD10T0501348 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 50A | ≥22.5M | 2x1.5KW | 1200*750*250 | Wall mounted | |
| 20T | GECD20T0631348 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 63A | ≤16.5M | 2x1.5KW | 1200*750*250 | Wall mounted |
| GECD20T0631648 | 3PH AC380-460Y 50/60HZ | AC48V 50/60Hz | 63A | ≥17.5M | 2x2.2KW | 1200*750*250 | Wall mounted | |
| 32T | GECD32T0801648 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 80A | ≤15.5M | 2x2.2KW | 1200*750*250 | Wall mounted |
| GECD32T0802048 | 3PH AC880-460V 50/60HZ | AC48V 50/60Hz | 80A | ≥16.5M | 2x3KW | 1200*750*250 | Wall mounted | |
| 50T | GECD50T1252048 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 125A | ≤21.5M | 2x3KW | 1200*750*250 | Wall mounted |
| GECD50T1252548 | 3PH AC380-460V 50/60HZ | AC48V 50/60Hz | 125A | ≥22.5M | 2x4KW | 1200*750*250 | Wall mounted |
