Overhead Cranes

Lifting capacity of Clescrane overhead crane can reach 320 tons. Our standard serial products include single girder, double girder overhead crane and suspension crane. In addition, we can provide tailored solutions according to your special industry needs. The applications are from simple factory solutions to multiple plant crane systems to complex automatic system. As a partner of the industry, each of our cranes and each crane part reflect the professional knowledge and reliability of the cranes in decades.

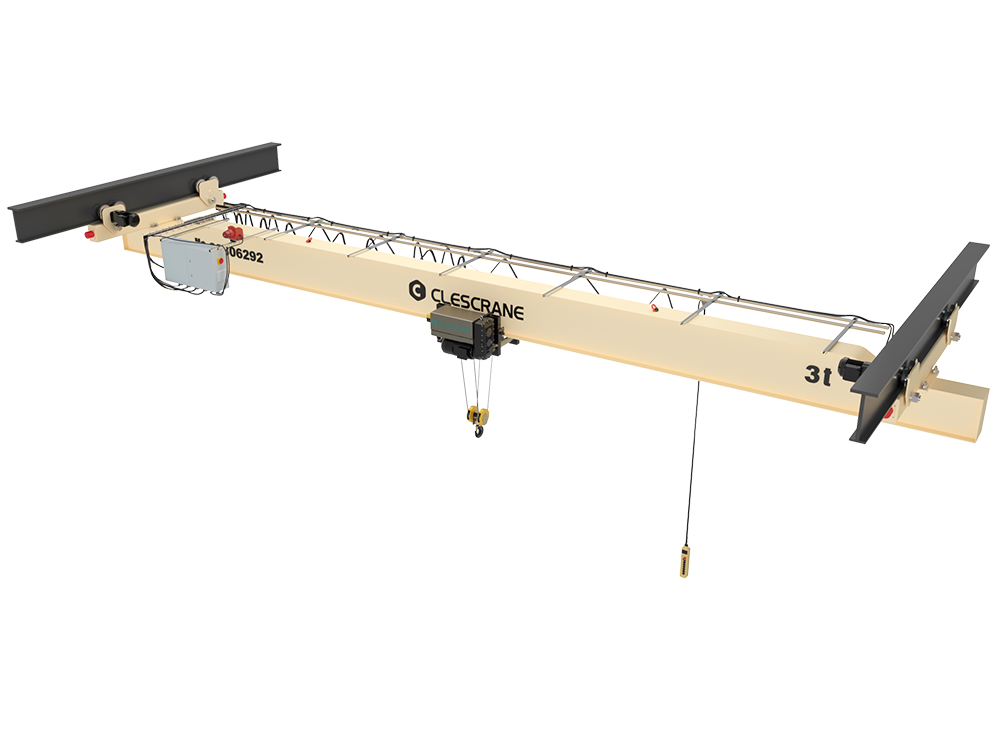

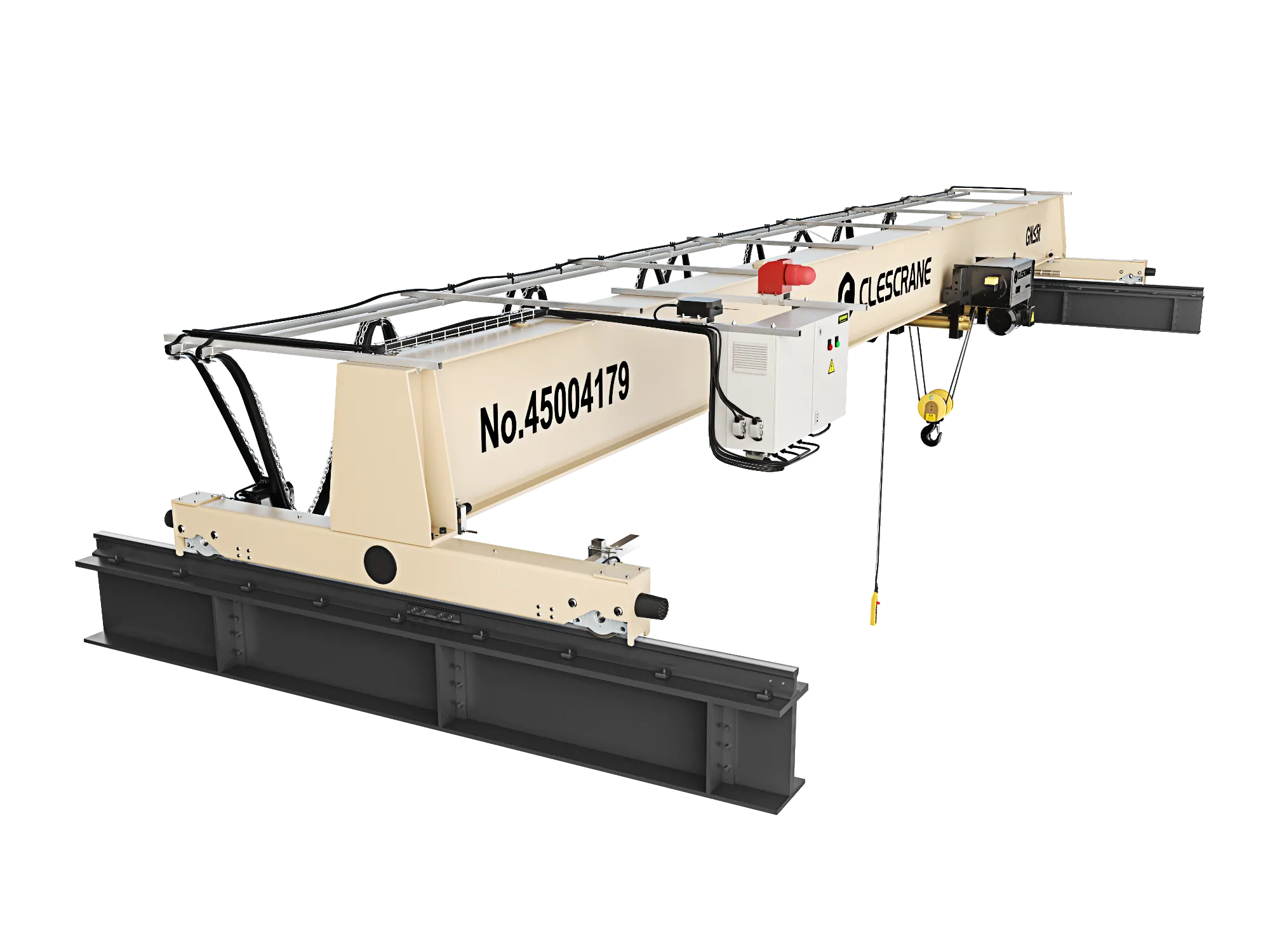

CHS Single Girder Overhead Crane

Max. Load: 20 ton
Span: 7.5m~35m ( span ≥ 25.5m, CHD double girder series is recommended. )
Working Class: A5,A6
Supplied with CH wire rope electric hoist or CCH chain Electric hoist
Clescrane CHS series single girder overhead cranes feature maximum rigidity for a minimum deadweight. This keeps the load on the crane runway to a minimum – and a cost-effective design can be selected for the building. This approach provides you with a cost-effective solution.

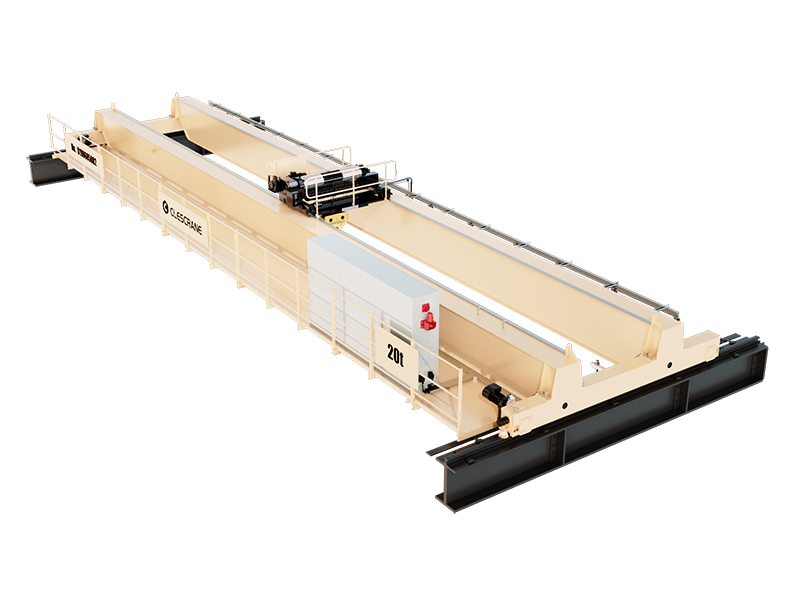

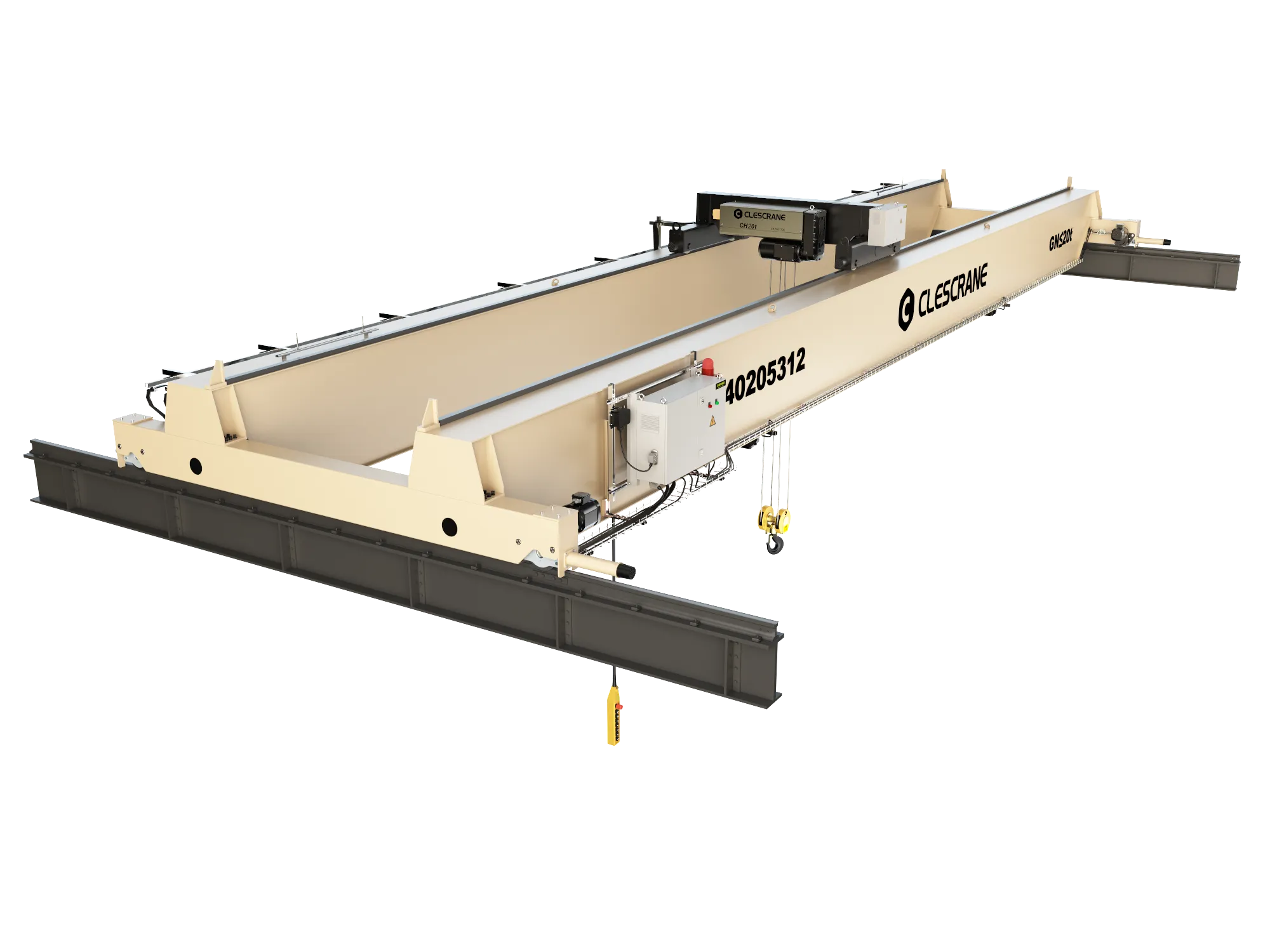

CHD Double Girder Overhead Crane

Max. Load: 100 ton
Span: 7.5m~35.5m
Working Class: A5,A6 ( ≥32t lifting mechanism with inverter control )
Clescrane CHD series double girder overhead cranes offer exceptional load capacity for a low deadweight. Powerful and agile, with a capacity of up to 100 tons, it is particularly good for general manufacturing, workshops, and assembly lines. The load hook can be raised between the two crane girders, which allows large lifting heights to be achieved.

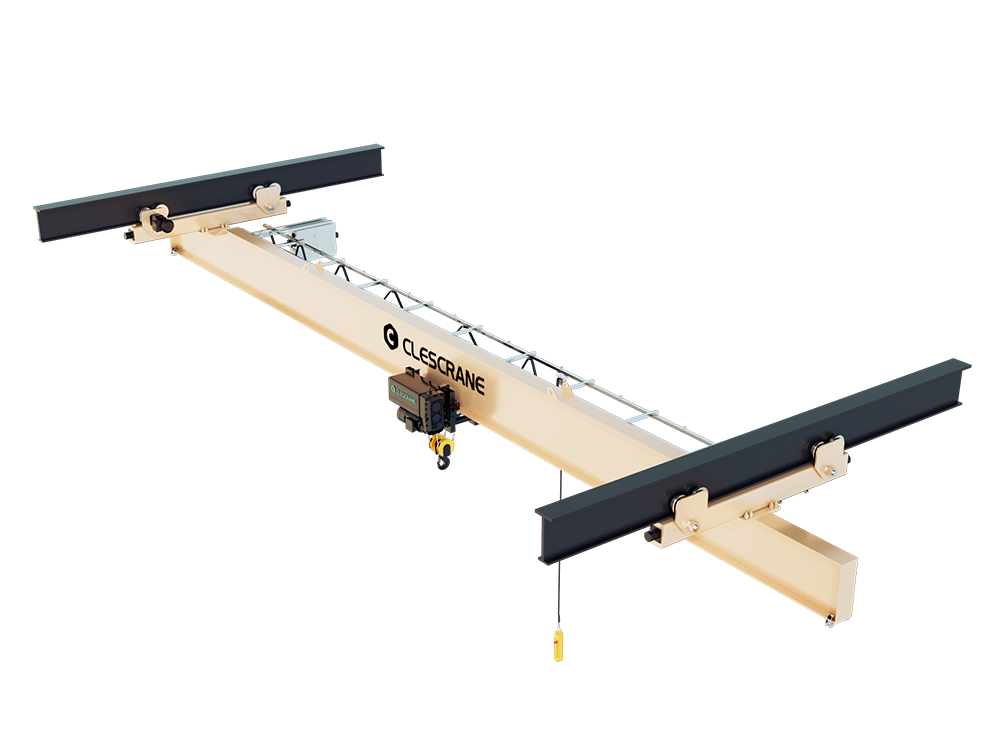

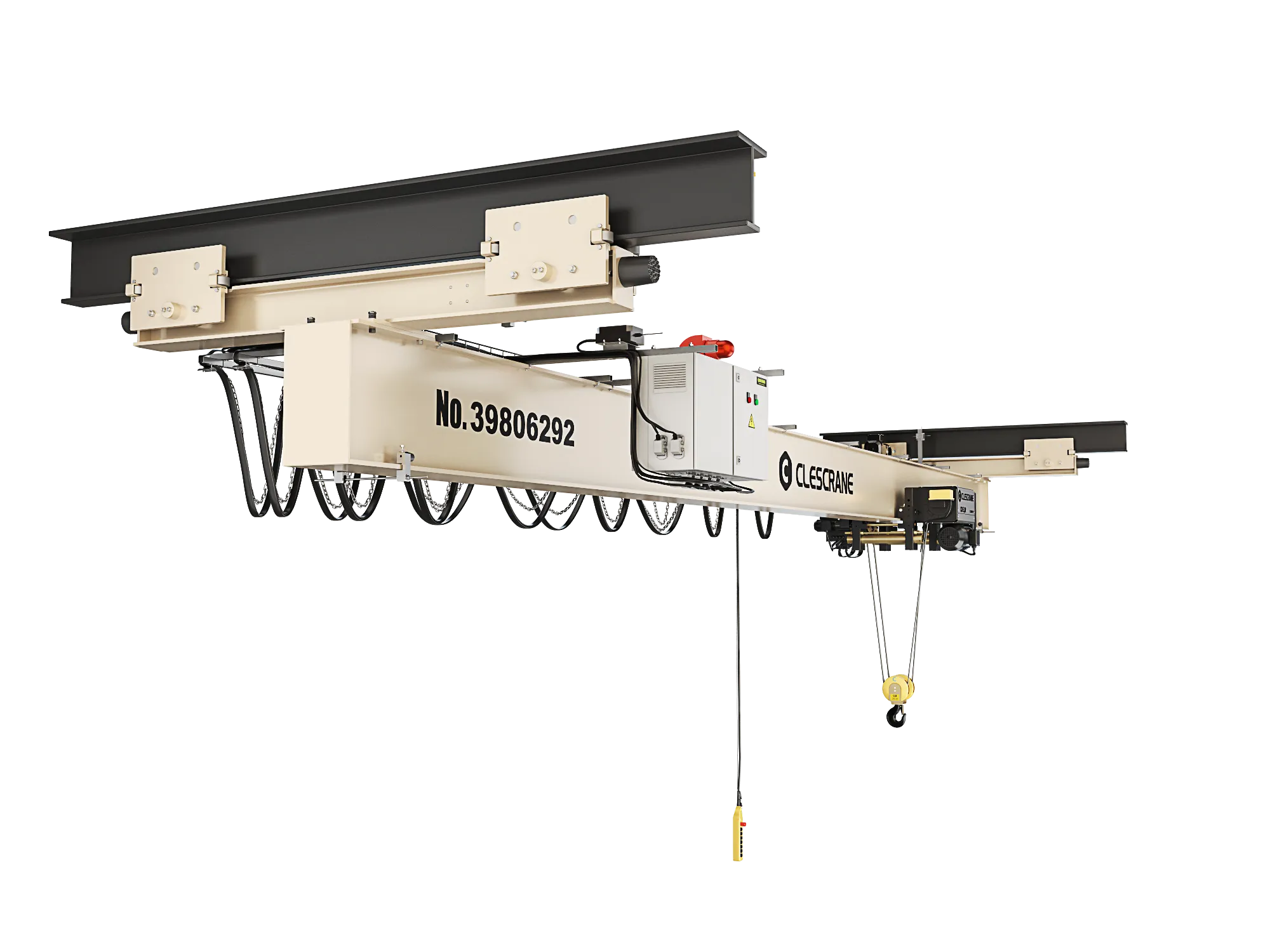

CHU Suspension Crane

Max. Load: 10 ton
(Including single girder CHUS and double girder CHUD suspension cranes)
Span: 3m~16m(longer span can be designed and manufactured)
Working Class: A5,A6
Supplied with CH series wire rope elecric hoist or CCH series chain electric hoist
Clescrane suspension cranes leave your entire workshop area available for production. The cranes are simply attached to the existing roof structure – columns to support the crane runway are not needed. This design saves time and costs. Alternatively, the installation of stand-alone steel superstructures also enables the solution to be adapted to changed production requirements.

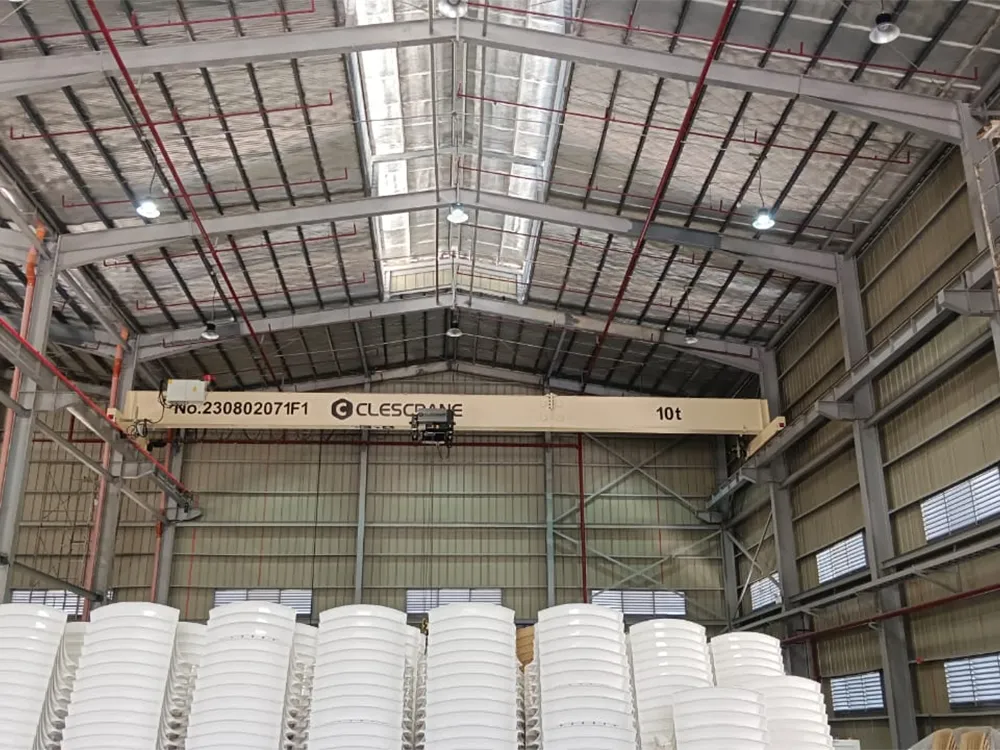

CWD Overhead Crane with Open Winch

Max. Load: 320 ton
Span: 7.5m~35.5m ( longer span can be designed and manufactured )
Working Class: A3, A4, A5, A6, A7, A8
CWD crane can lift goods of 5 tons to more than 320 tons according to different configurations. It can also meet the personalized needs of customers based on different options, such as attachments for workpiece overturn, anti-swing devices, auto positioning, maintenance supervision, remote fault diagnosis and so on. We will offer personalized and professional solutions for our customers with our professional experience and advanced technology.

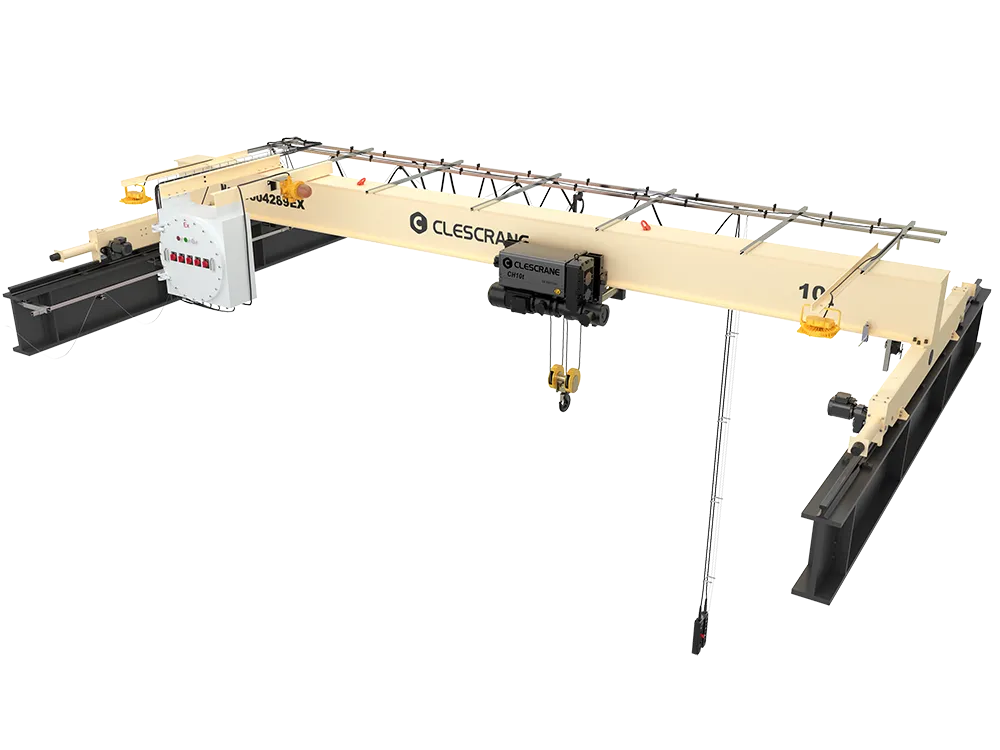

EX-CHS Single Girder Explosion Proof Crane

EX-CHS explosion-proof overhead crane is designed for hazardous areas zone 1 and zone 2 of European standard ATEX 2014/34/UE. Crane and components comply with EN ISO 80079 and EN 60079. EX-CHS lifting capacity ranges from 1000 Kg to 20000Kg.
Max. Load: 20 Ton
Span: 7.5m~35m ( span ≥ 25.5m, EX-CHD double girder series is recommended. )
Working Class: A5,A6
Supplied with CHEX wire rope electric hoist

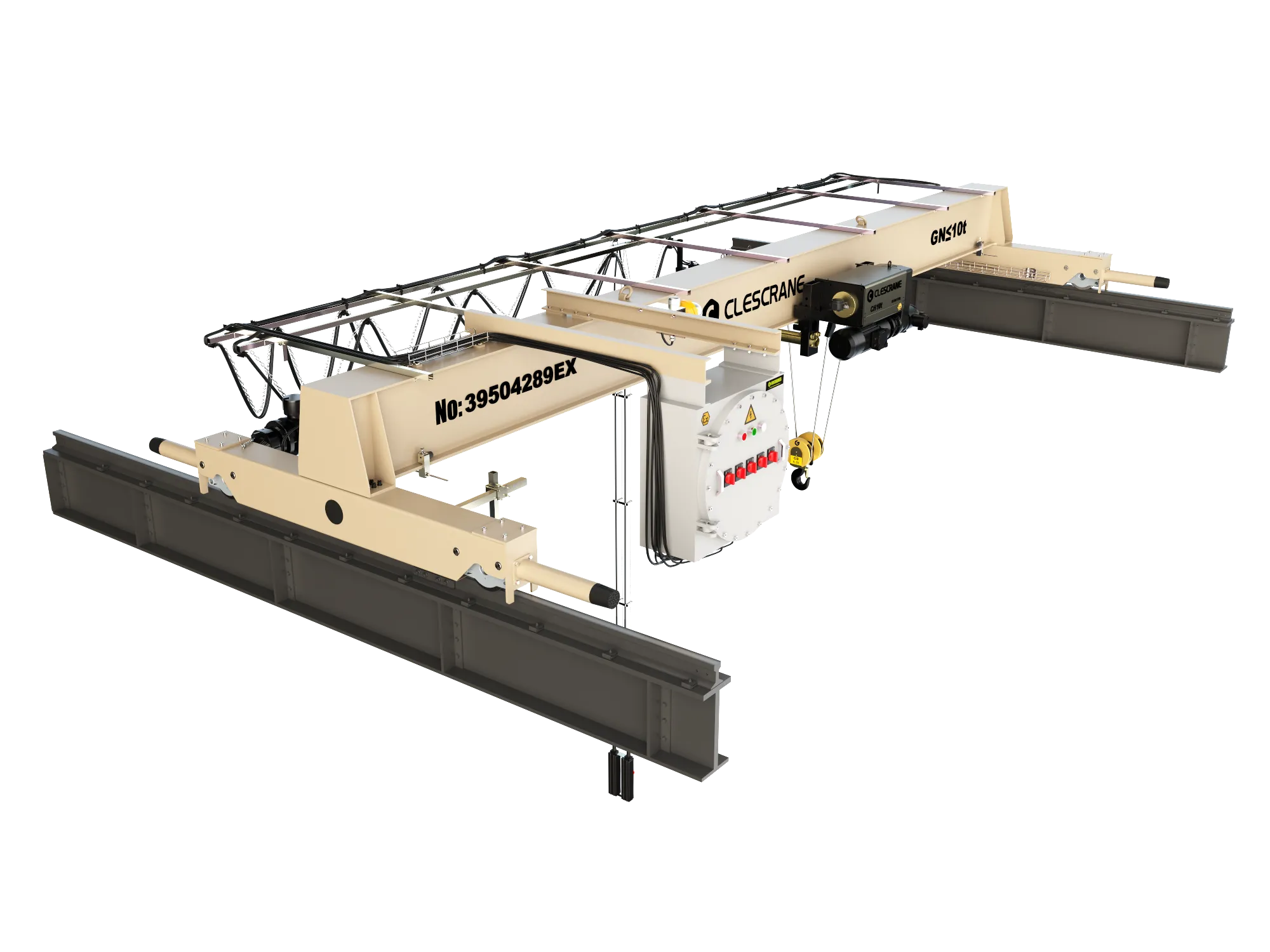

EX-CHD Double Girder Explosion Proof Crane

EX-CHD explosion-proof overhead crane is designed for hazardous areas zone 1 and zone 2 of European standard ATEX 2014/34/UE. Crane and components comply with EN ISO 80079 and EN 60079. EX-CHD lifting capacity ranges from 1000 Kg to 63000Kg.
Max. Load: 63 Ton
Working Class: A5,A6
Supplied with CHEX wire rope electric hoist

EX-CHU Explosion Proof Suspension Crane

EX-CHU explosion-proof crane is designed for hazardous areas zone 1 and zone 2 of European standard ATEX 2014/34/UE. Crane and components comply with EN ISO 80079 and EN 60079. EX-CHU lifting capacity ranges from 1000 Kg to 10000Kg.
Max. Load: 10 Ton
Span: 3m~16m (longer span can be designed and manufactured)
Working Class: A5, A6
Supplied with CHEX wire rope electric hoist

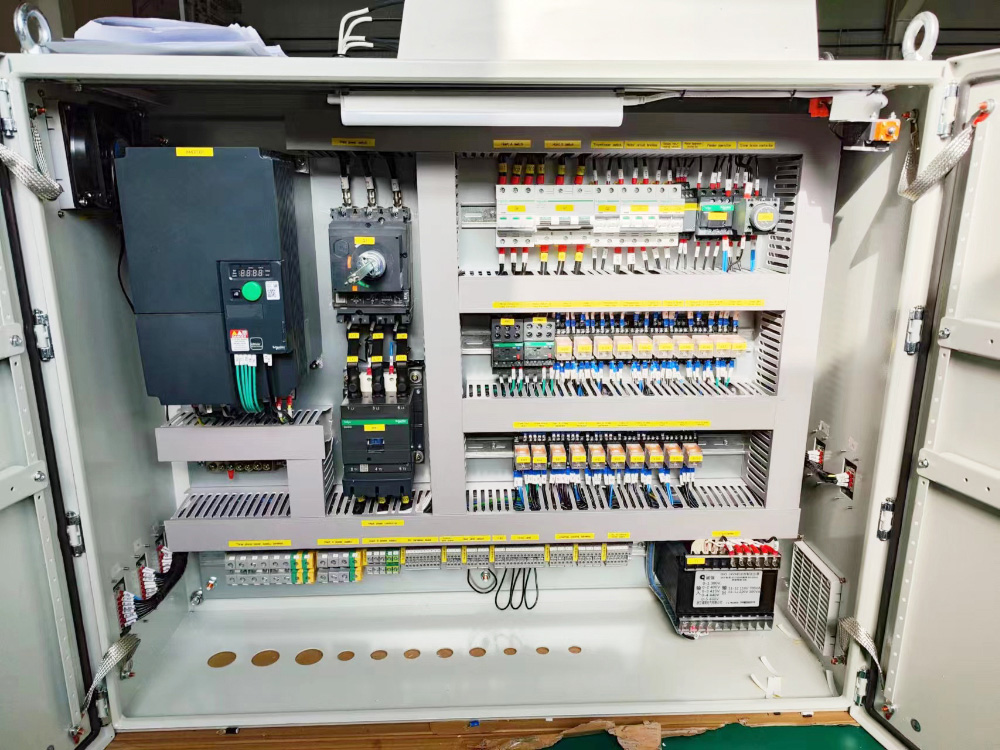

Basic Electric Control

Our crane control panels meets the following standards:
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards
